Solar DC Refrigerator
The Solar DC Refrigerator series provides eight models from 60L to 245L, using 12V/24V DC operation, a DC compressor and rated power from 72W to 130W. Cooling temperature reaches -18°C, while available solar panel options are 200W or 400W and battery options are 150Ah or 400Ah. The series suits off-grid homes, remote shops and medical storage projects.
Key Features
- ✓Eight models covering capacities from 60L to 245L
- ✓Direct 12V/24V DC operation for off-grid refrigeration systems
- ✓Rated power from 72W to 130W by selected model
- ✓Cooling temperature down to -18°C for cold storage
- ✓DC compressor for solar-powered refrigeration applications
- ✓Solar panel options of 200W or 400W
- ✓Battery options of 150Ah or 400Ah with a 30A controller

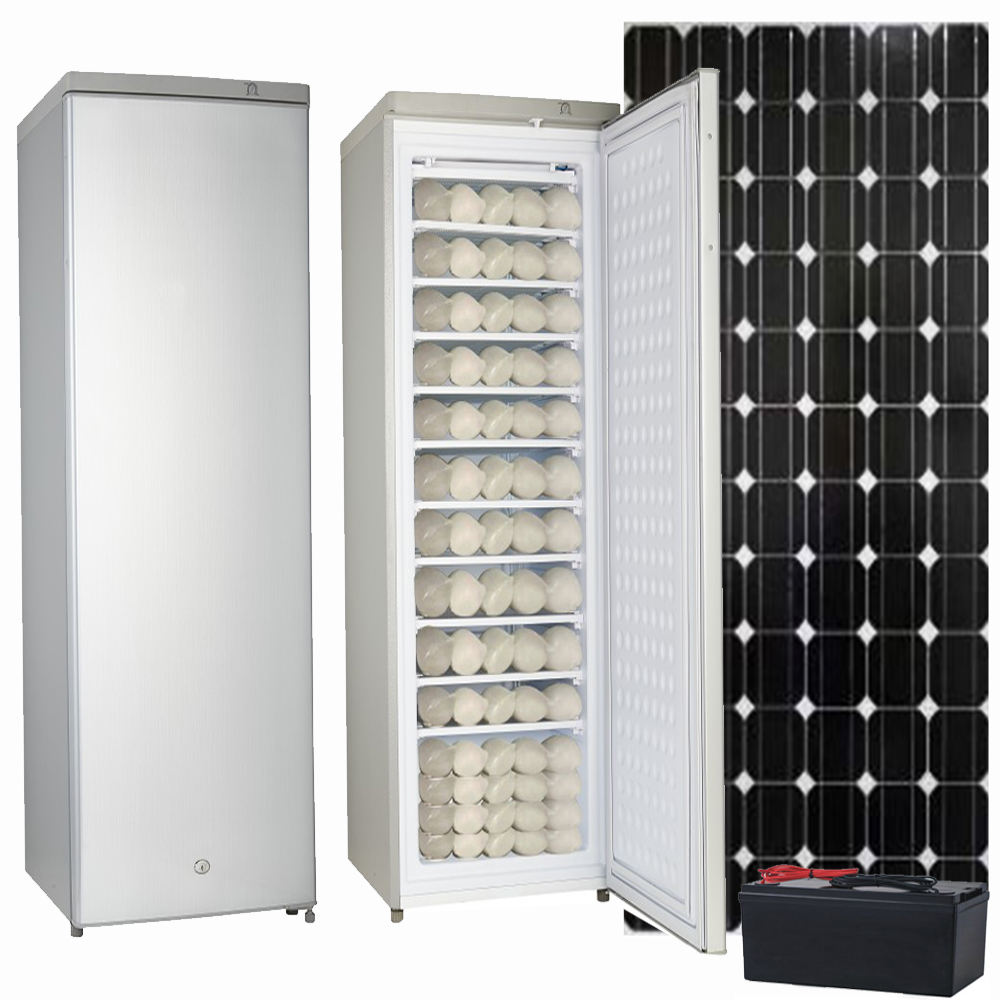

- ✓Complete solar kit availability including panel and battery

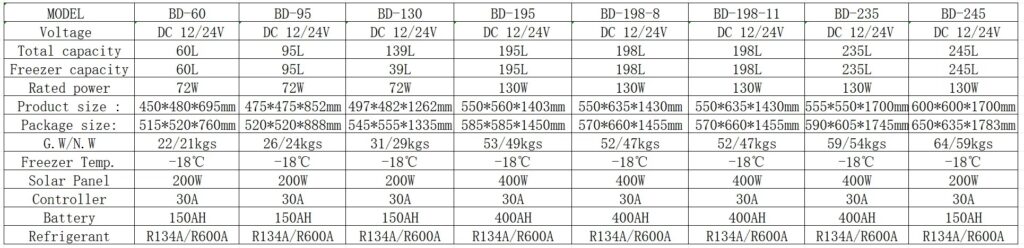

Technical Specifications
Common FAQs
Select from eight models covering 60L to 245L according to required storage volume, installation space and intended use. Confirm the selected model, cabinet dimensions, net weight, freezer section requirements and daily operating conditions before ordering. BD-130 has 139L total volume and a 39L freezer section.

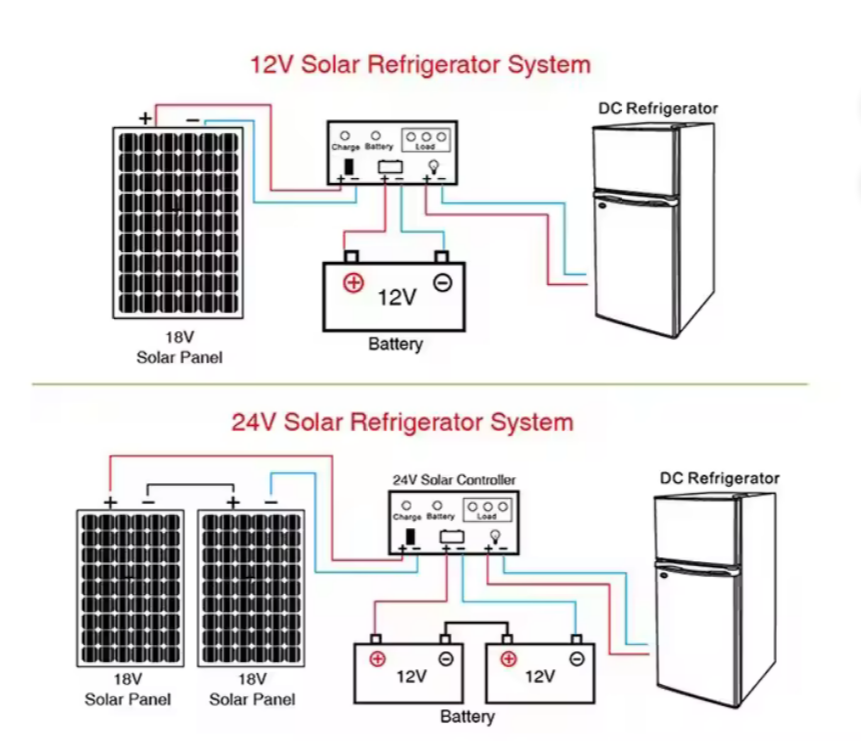

The published options include 200W or 400W solar panels and 150Ah or 400Ah batteries, with a 30A controller. Confirm the solar and battery configuration for the selected model. System design should also verify DC voltage, wiring, protection, charging conditions and expected operating schedule.
Rated power ranges from 72W to 130W across the series, depending on the selected model. Use the applicable model rating for preliminary load planning, then confirm the complete system design, wiring, protection and operating conditions. Actual project performance depends on the refrigerator, solar supply and battery arrangement.
The series provides cooling temperature down to -18°C for off-grid homes, remote shops and medical storage applications. Confirm the required storage temperature, product handling conditions, freezer requirements and target-market rules before selecting a model. Application suitability depends on the complete storage and power design.
The published specification lists R134A/R600A refrigerant options across the product information. Confirm the refrigerant used by the selected model before ordering, together with any target-market documentation or handling requirements. Do not assume one refrigerant applies to every model in the series.
Prepare a suitable position with adequate access, stable support and clearance for the selected cabinet. Cabinet sizes range from 450 × 480 × 695mm to 600 × 600 × 1700mm, with net weights approximately 21kg to 59kg. Confirm ventilation, wiring, protection and environmental requirements before installation.
CE and RoHS documents are available for review. Confirm document format, destination-market requirements and any additional approval information required for resale, medical storage or project supply. Provide the selected model and target application when requesting the document package.
Provide the required capacity, model preference, quantity, target market, application and installation conditions. Also state whether a complete solar kit is required and confirm the preferred panel and battery options. Our team can verify the 30A controller arrangement, documents and order details before quotation.
