Solar DC TV
The Solar DC TV series combines 12V DC operation, Android functions and built-in LiFePO4 storage for off-grid homes and locations with limited electricity access. Eight screen sizes are available from 19 to 65 inches, with 10W to 30W power use, approximately 6 to 8 hours of runtime, included solar panels, HDMI, USB and AV inputs, and customizable plug options.
Key Features
- ✓12V DC operation supports direct connection within compatible solar home systems
- ✓Built-in LiFePO4 batteries provide 58.88Wh to 176.64Wh depending on model
- ✓Eight screen sizes range from 19 to 65 inches for different household layouts
- ✓Solar panel configurations range from 25W to 70W by selected model
- ✓Android system supports Google Play, Chrome, YouTube, Netflix, Facebook and APK installation
- ✓HDMI, USB and AV inputs support varied connected-device requirements
- ✓Power consumption ranges from 10W to 30W across the series
- ✓Customizable plugs and available transport documents support overseas procurement

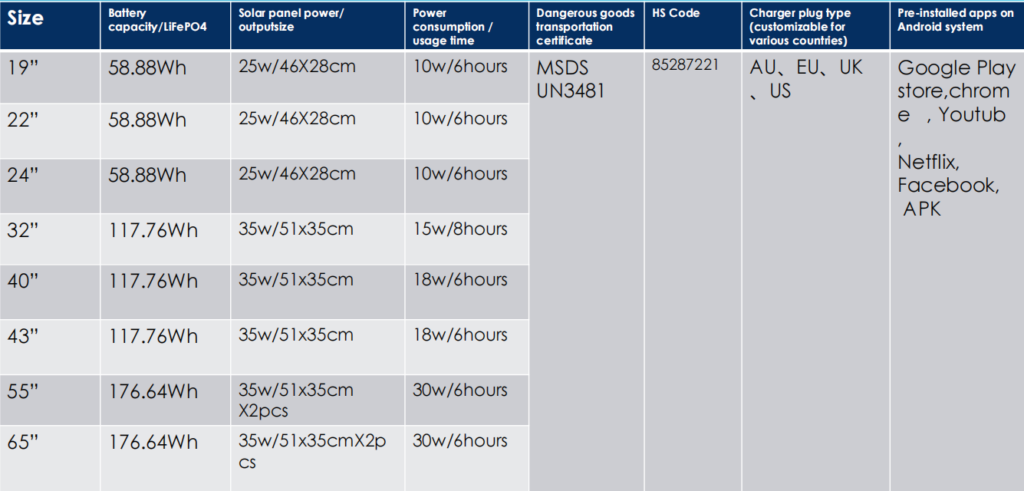

Technical Specifications
Common FAQs
Select the screen size according to viewing distance, installation space, target household requirements and available solar capacity. The series includes 19, 22, 24, 32, 40, 43, 55 and 65-inch models. Confirm the selected model's battery, panel configuration, power use, mounting space and intended application before ordering.
Battery capacity ranges from 58.88Wh to 176.64Wh, with approximately 6 to 8 hours of runtime depending on screen size and model. The 19, 22 and 24-inch models use 58.88Wh, the 32, 40 and 43-inch models use 117.76Wh, and the 55 and 65-inch models use 176.64Wh.
The 19, 22 and 24-inch models use a 25W panel measuring 46 × 28cm, while the 32, 40 and 43-inch models use a 35W panel measuring 51 × 35cm. The 55 and 65-inch models use two 35W panels. Confirm the final configuration before ordering.
The Android system supports Google Play, Chrome, YouTube, Netflix, Facebook and APK installation. Application availability can depend on the selected software configuration and target market requirements. Confirm pre-installed applications, language settings, network compatibility and any requested customization with our team before placing a project order.
All models operate on 12V DC, with listed power consumption from 10W to 30W. Select cabling, protection, battery capacity and solar charging capacity according to the chosen TV model and installation conditions. Confirm the complete system design before connecting the television to a project power source.
Yes, the charging plug options are customizable, with standard plug choices available for different target markets. Confirm the required plug specification, quantity, labeling and packaging details before ordering. The selected plug must match the installation environment and the applicable electrical requirements for the intended market.
CE and RoHS documents are available, and an MSDS UN3481 transport document is provided for the battery. Confirm the document set, product configuration, destination requirements and shipment handling process before ordering. Additional project documentation depends on the selected model and inquiry details.
Provide the required screen sizes, quantities, target market, plug specification, solar panel configuration, packaging or labeling needs and document requirements. Also state the intended application and any Android customization request. Our team can then confirm the available model, technical configuration and order details for the project.
