VMIV 4KW/6KW Hybrid Inverter
The VMIV 4KW/6KW hybrid inverter provides 4000W or 6000W rated power with pure sine wave output for on-grid and off-grid applications. The 4KW model uses a 24V battery and supports up to 5000W PV, while the 6KW model uses 48V and supports 6000W. Both provide 120A charging, touch LCD status display, Wi-Fi monitoring and battery equalization.
Key Features
- ✓4000W or 6000W rated power with pure sine wave output
- ✓24Vdc battery system for 4KW model and 48Vdc for 6KW
- ✓MPPT supports up to 5000W or 6000W PV array power
- ✓60-450Vdc MPPT range with 500Vdc maximum PV voltage
- ✓120A maximum solar and AC charging current
- ✓5-inch color touch LCD with status ring
- ✓Wi-Fi monitoring for Android, iOS and PC systems
- ✓Cold start, battery equalization and built-in anti-dust kit

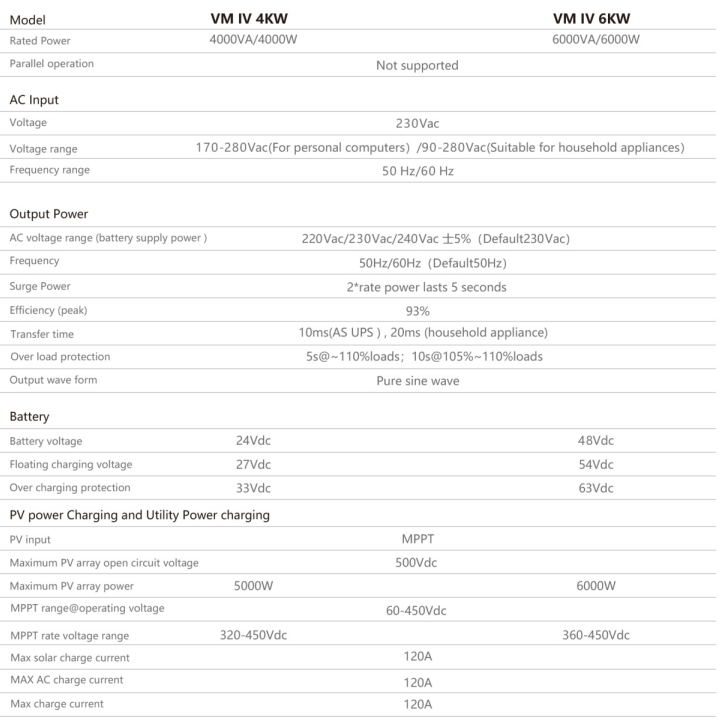

Technical Specifications
Common FAQs
Choose according to required rated power, battery voltage and PV capacity. The VMIV 4KW provides 4000VA/4000W with a 24Vdc battery and up to 5000W PV array power. The VMIV 6KW provides 6000VA/6000W with a 48Vdc battery and up to 6000W PV array power. Confirm loads and system design before selection.
The VMIV 4KW uses a 24Vdc battery system with 27Vdc floating charge and 33Vdc over-charge protection. The VMIV 6KW uses 48Vdc, with 54Vdc floating charge and 63Vdc over-charge protection. Confirm battery capacity, current, protection, cabling and charge settings. The inverter does not include a battery or battery cycle rating.
Maximum PV array power is 5000W for the 4KW model and 6000W for the 6KW model. The MPPT range is 60-450Vdc, rated at 320-450Vdc for 4KW and 360-450Vdc for 6KW. Maximum PV open-circuit voltage is 500Vdc. Confirm string voltage, temperature, isolation and protection before commissioning.
No. Parallel operation is not supported for the VMIV 4KW or 6KW models. Size one inverter against the required continuous and surge loads, battery voltage, PV capacity and AC conditions. The output provides surge power at twice rated power for 5 seconds, so starting loads and overload behavior should be reviewed before ordering.
The inverter includes a 5-inch color touch LCD with a status ring for local operating information. Confirm the displayed parameters, user interface requirements and commissioning workflow for the project. Built-in Wi-Fi monitoring is also available for Android, iOS and PC systems, subject to the required network and software arrangement.
Transfer time is 10ms in UPS-like mode and 20ms in household mode. AC input is 230Vac, with a 170-280Vac PC-mode range or 90-280Vac household-mode range. Confirm the selected mode, utility conditions, output loads and equipment tolerance before using the inverter for continuity-dependent applications.
The inverter provides full protection, battery equalization, cold start and a built-in anti-dust kit. Review ventilation, protective devices, wiring, battery settings, PV isolation and AC conditions during design and commissioning. The published information does not define every protection threshold, so confirm detailed installation requirements with our team before purchase.
CE and RoHS documents are available. Every order includes a 3-year limited warranty. For a quotation, provide the selected model, application, load profile, battery details, PV design, AC conditions, monitoring needs, quantity and destination. Confirm labeling, documentation and final configuration before ordering.
