Pull-rod ESS 5KWh

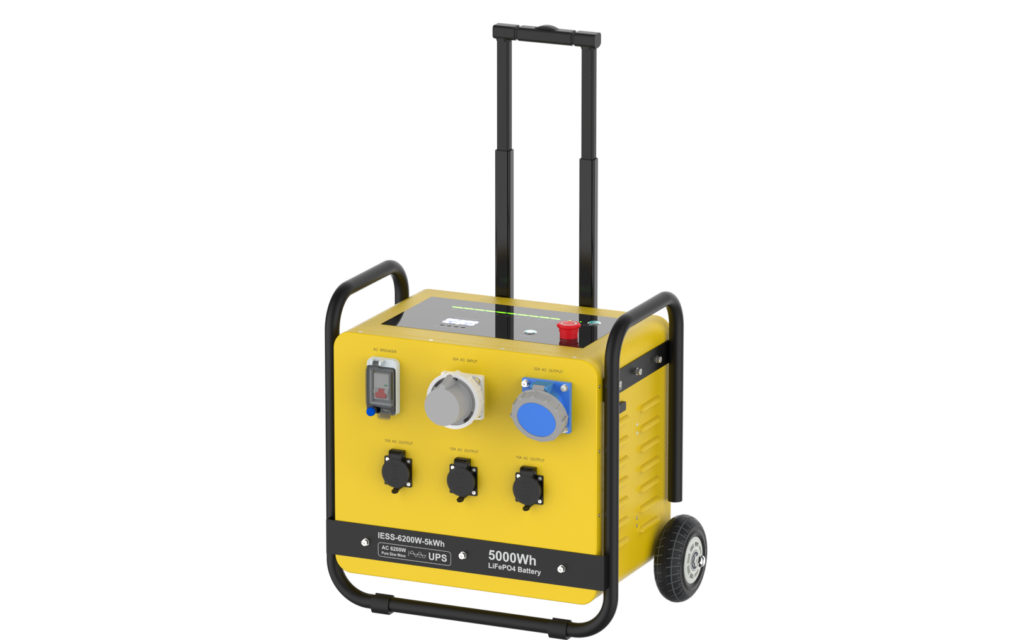

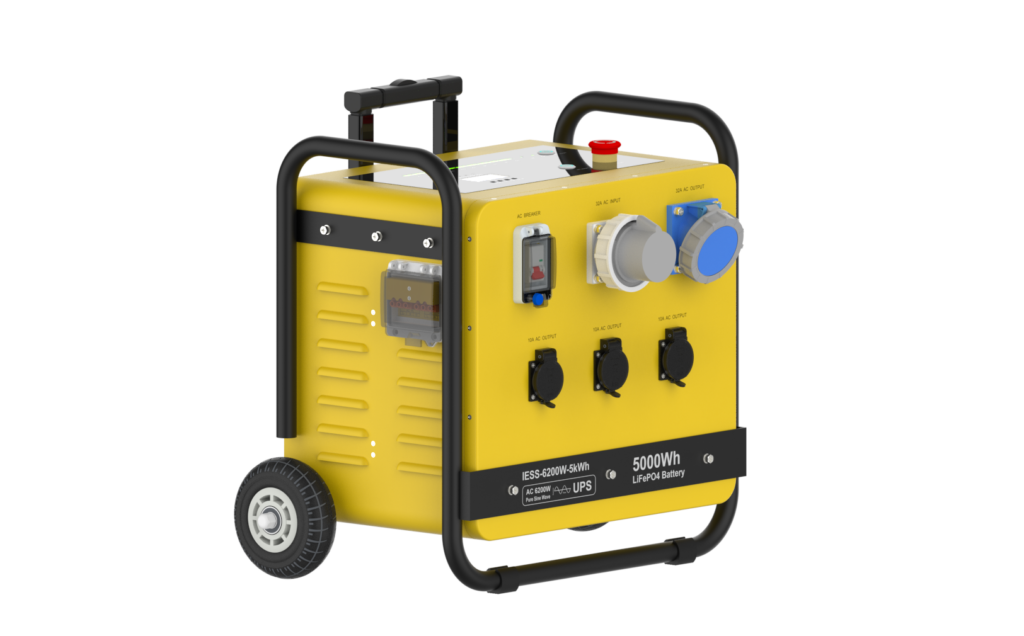

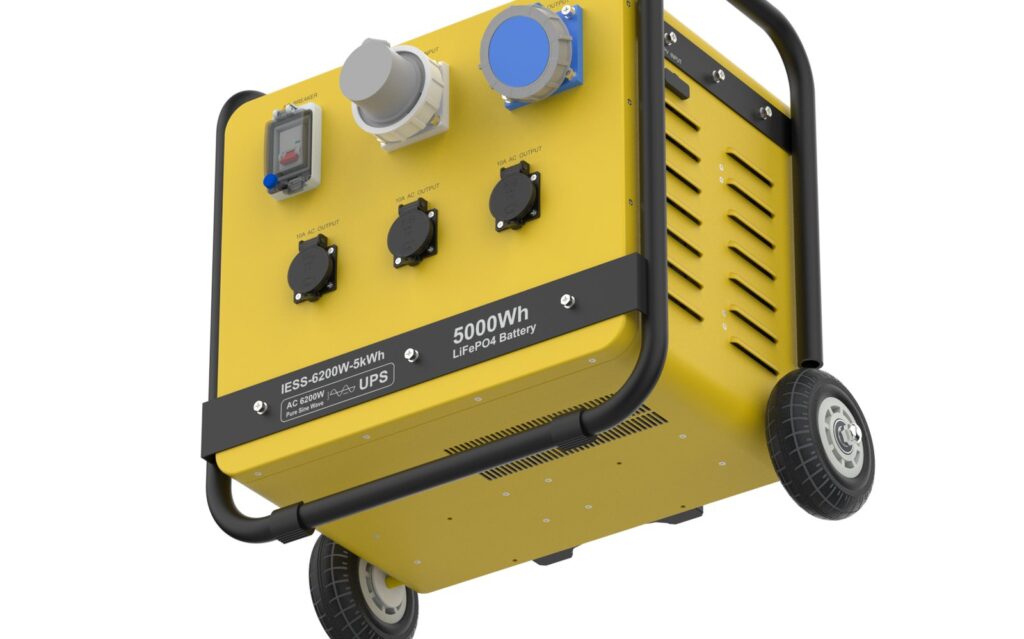

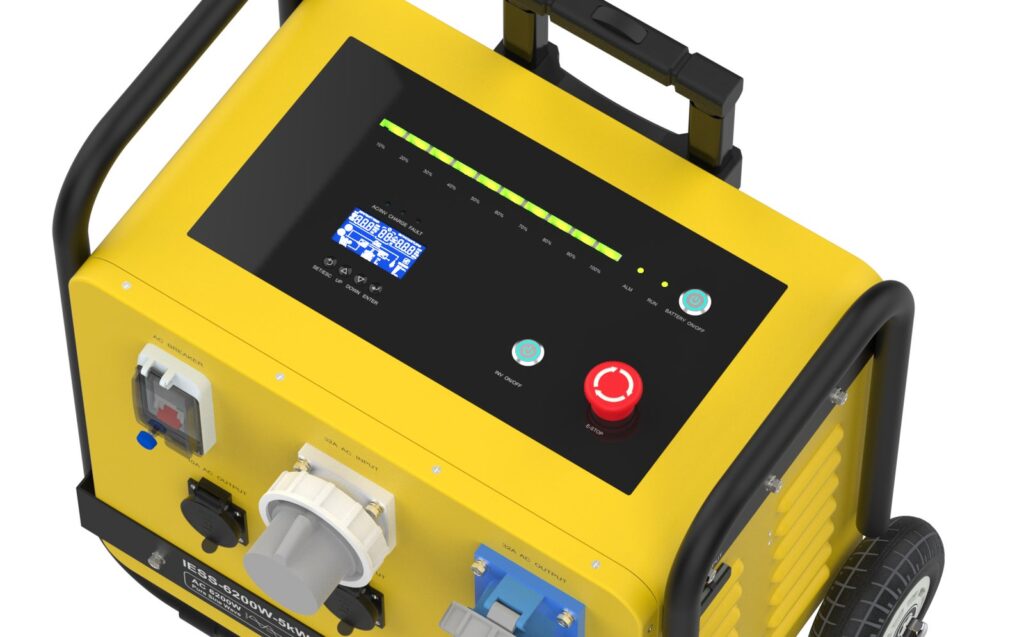

The Pull-rod 5kWh ESS combines a 5120Wh LiFePO4 battery, inverter and charging system in a mobile 68kg enclosure. It provides three AC outlets with 2000W per outlet and 6200W total maximum output, accepts PV input from 120-450V at up to 22A, and includes IP54 protection, wheels and a pull-rod.
Key Features
- ✓5120Wh LiFePO4 energy capacity for mobile residential and project power deployment
- ✓6200W total maximum pure sine wave AC output across three outlets
- ✓Each AC outlet supports up to 2000W for distributed connected loads
- ✓Solar PV input supports 120-450V with 22A maximum current
- ✓AC mains and solar PV charging support dual-source operation
- ✓More than 6,000 cycles specified for the LiFePO4 battery system
- ✓IP54 protection with operating temperature from -15 to 55°C
- ✓Pull-rod and wheels support relocation of the 68kg mobile unit

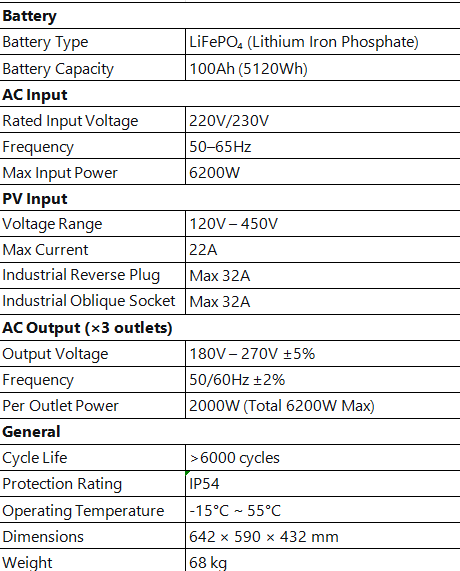

Technical Specifications
Common FAQs
The unit is designed for mobile and portable power deployment where its 5120Wh capacity, three AC outlets and pull-rod with wheels match the site needs. Confirm access routes, ground conditions, handling requirements, connected loads and operating environment before moving the 68kg enclosure to a project location.
Start with the published 5120Wh energy figure, then allow for inverter efficiency, battery reserve, load variation, temperature and cable losses. Divide usable energy by the measured load in watts for an initial estimate. Actual runtime depends on the connected equipment and operating conditions, so confirm the expected duration before deployment.
Yes. The ESS supports AC input at 220V/230V and 50-65Hz, with maximum input power of 6200W, and PV input from 120-450V at up to 22A. Confirm source compatibility, protection, cable sizing, PV string voltage and site wiring before charging. The final connection should follow the project design.
The unit has three AC outlets, each supporting up to 2000W, with 6200W total maximum AC output. Distribute loads according to their continuous power, startup demand and power factor, while respecting both individual outlet and total limits. Confirm appliance compatibility and connection requirements before operating the unit.
The enclosure is rated IP54 and operates from -15 to 55°C. Confirm the intended site, exposure, ground conditions, ventilation, cable routing and protection from conditions beyond the published rating. IP54 does not remove the need for suitable placement and handling. Review the installation environment before deployment.
The battery is specified for more than 6,000 cycles. Actual cycle performance depends on charging and discharging conditions, depth of discharge, temperature, storage, load profile and maintenance. Confirm the intended operating pattern and project requirements with our team before ordering, because the supplied data does not define a test condition.
UN38.3, CE and RoHS documents are available for this model. Provide the target application, quantity, destination, deployment environment and installation details so the applicable document set can be confirmed for procurement and project review.
Provide the required loads, outlet allocation, backup duration, AC supply details, PV string voltage and current, relocation route, operating environment, quantity and destination. Include handling and site-access information for the 68kg pull-rod unit. This allows configuration, documentation and commercial details to be confirmed with our team.
