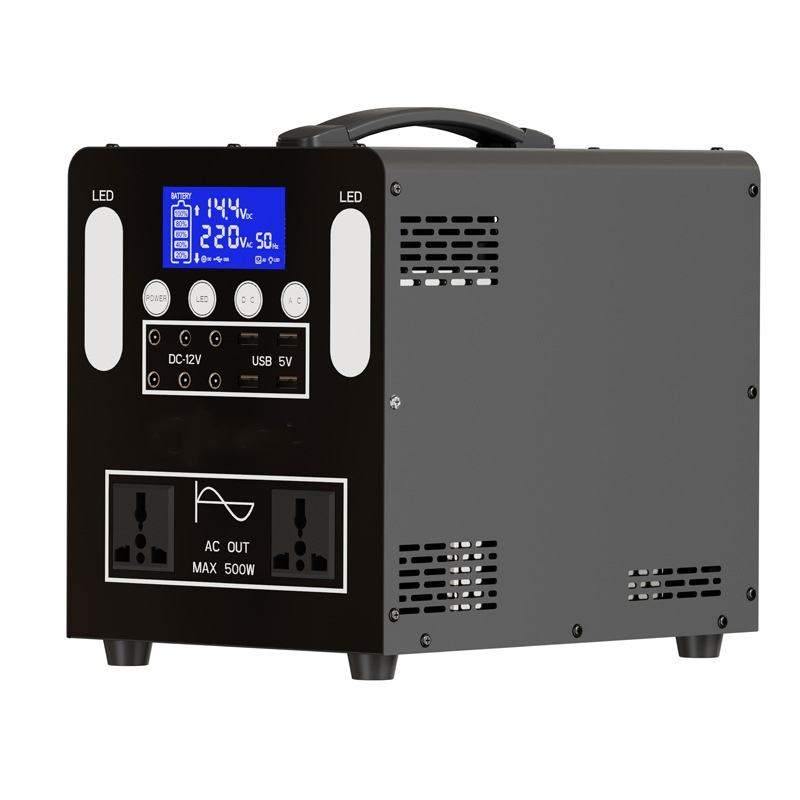

B500-500W Portable Power Station
The B500 is a 500W pure sine wave backup power station for compatible electronics, camping, outdoor work, home backup and remote applications. Its 12V 50Ah sealed lead-acid battery, replaceable battery design, built-in AC charger, 15-40V solar input, four USB ports, six DC5521 ports and UPS function support varied deployment requirements. Confirm load demand, battery replacement arrangements and target-market requirements before ordering.

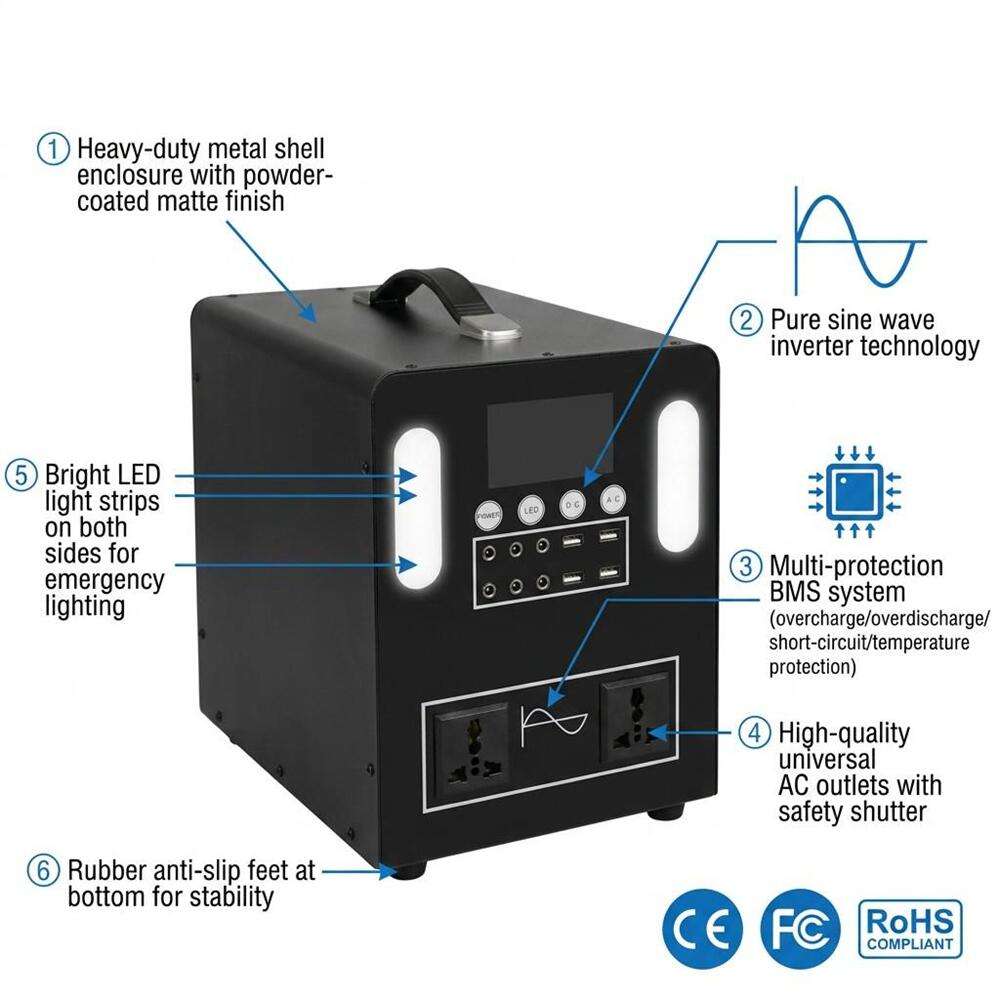

Key Features
- ✓500W pure sine wave output supports compatible sensitive electronics and backup loads
- ✓12V 50Ah sealed lead-acid battery provides a replaceable battery configuration
- ✓Built-in AC charger operates at 14.4V and 5A
- ✓Solar charger accepts 15-40V input up to 200W and 15A
- ✓Four USB ports support charging for compatible portable devices
- ✓Six 12V DC5521 ports support compatible low-voltage equipment
- ✓UPS function supports backup power applications requiring continuity
- ✓LCD display shows capacity, voltage, frequency and operating status

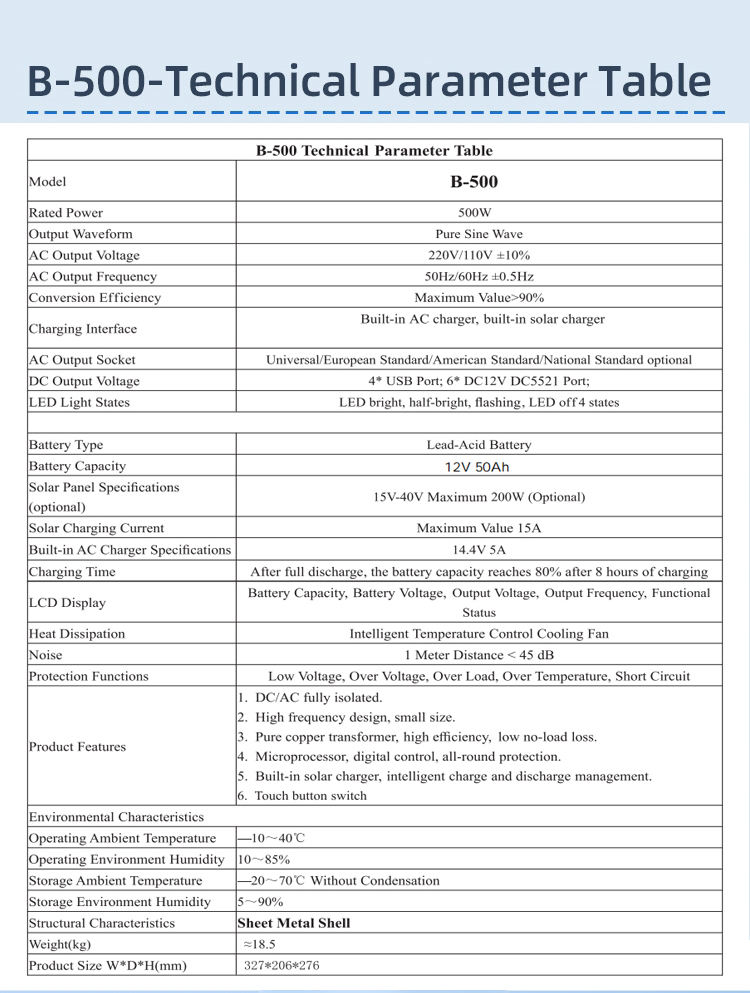

Technical Specifications
Common FAQs
The B500 suits compatible electronics, camping equipment, outdoor work tools and home or remote backup loads within its 500W rating. Its pure sine wave output is intended for sensitive electronics, but starting current and continuous demand must be checked. Confirm voltage, wattage, runtime and connector requirements before selection.
The B500 uses a 12V 50Ah sealed lead-acid battery with a replaceable battery advantage. This supports projects seeking an economical backup format and planned battery replacement. Confirm replacement procedures, service arrangements, charging requirements, installation access and target-market preferences before placing an order.
The built-in solar charger accepts 15-40V input, with a maximum solar charging power of 200W and maximum current of 15A. Confirm panel voltage, current, wiring, connector arrangement and site conditions before connection. Actual charging performance depends on the selected PV equipment and sunlight.
The built-in AC charger is rated at 14.4V and 5A, reaching about 80% charge in approximately 8 hours after full discharge. Confirm the stated charging condition, battery condition, input supply and charger compatibility before quoting project runtime or operating schedules.
The B500 provides four USB ports and six 12V DC5521 ports, alongside its AC output. Select each connector according to the device voltage and current requirement, and keep the total demand within the 500W rated output. Confirm simultaneous load distribution and cable requirements before deployment.
The B500 includes a UPS function for backup power applications. Confirm the connected equipment's transfer requirements, input voltage, load profile and acceptable interruption before integration. UPS suitability depends on the complete system design, so test the intended equipment and operating sequence before project approval.

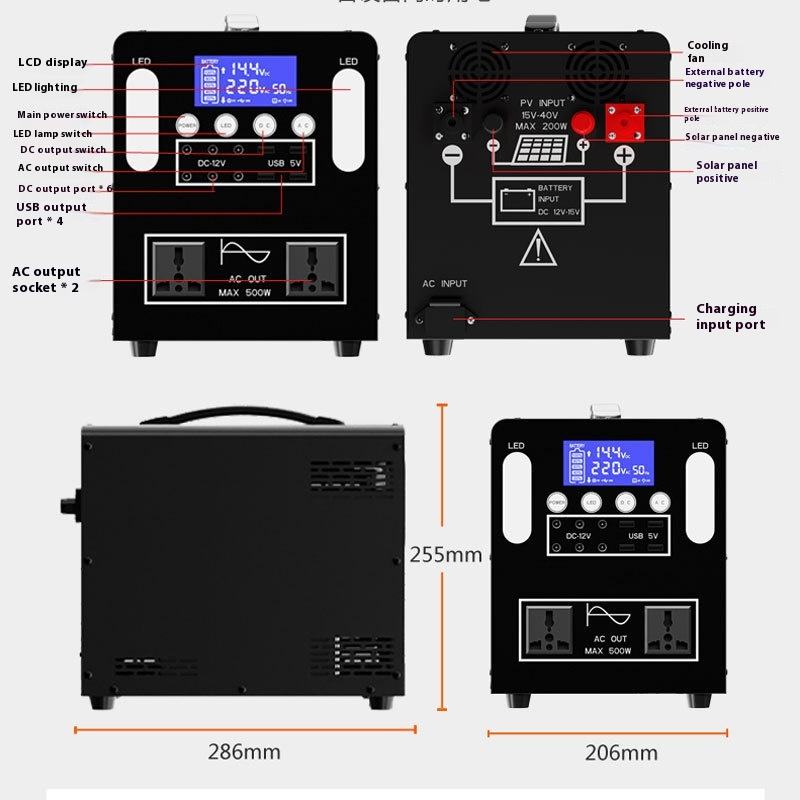

The B500 measures 327 × 206 × 276mm and weighs approximately 18.5kg. Its specified working temperature is -10 to 40°C, with noise below 45dB at 1m. Confirm transport, placement, ventilation, access and environmental conditions for the intended camping, backup or remote installation.
CE and RoHS documents are available. Provide quantity, application, target market, required output, battery replacement plan, solar configuration and packaging or OEM requirements. Confirm destination documentation and final configuration with our team before ordering. Every order includes a 3-year limited warranty.
