Eg013Li-100W Portable Power Station
The Eg013Li is a compact 100W portable power station for camping, emergency lighting, laptops, cameras, drones and CPAP loads within its output limits. It uses a 12.8V 76.8Wh LiFePO4 battery, modified sine wave AC output, USB QC18W, USB-C PD20W and a built-in 16V 12W solar panel. LCD status display, automatic cooling and multiple protections support project evaluation.
Key Features
- ✓100W modified sine wave AC output with 220V/110V universal socket
- ✓12.8V 76.8Wh LiFePO4 battery for compact backup applications
- ✓Built-in 16V 12W solar panel with optional external solar input
- ✓USB QC18W and USB-C PD20W outputs for small devices
- ✓Six-mode LED light for emergency and outdoor lighting
- ✓LCD displays capacity, voltage and charge or discharge status
- ✓Automatic cooling with operating noise below 45dB at 1m
- ✓Protection against low voltage, over voltage, overload, overheating and short circuits

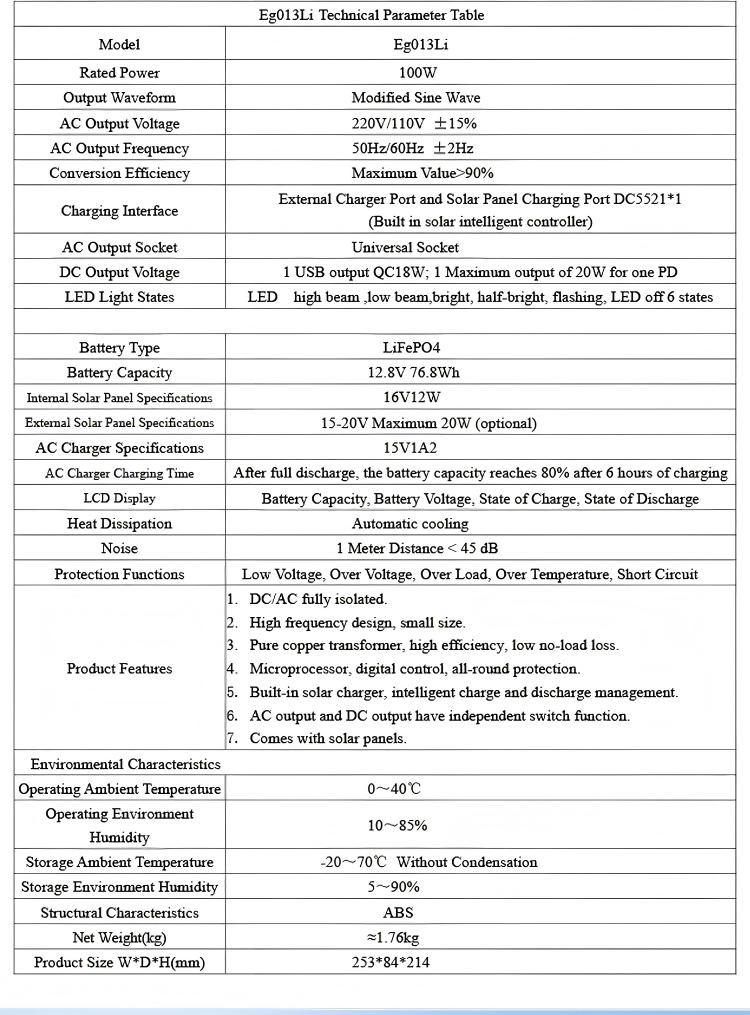

Technical Specifications
Common FAQs
The Eg013Li suits camping, emergency lighting, laptops, cameras, drones and CPAP loads within its output limits. Its 100W rated AC output, 76.8Wh battery and USB charging ports support compact backup use. Confirm the device starting demand, continuous load, required runtime and charging arrangement before selecting it for a project.
The built-in panel is a 16V 12W solar panel integrated into the unit. It provides an additional charging option when suitable sunlight and placement are available, while actual charging depends on conditions and system status. The product also includes a built-in solar charge controller. Confirm expected charging performance for the target market.
An external solar panel option is supported through the DC5521 solar charging port. The listed range is 15-20V with a maximum input of 20W. Panel compatibility, connection method and charging conditions should be confirmed before ordering, particularly where the project uses a specified panel or installation arrangement.
The unit supports small devices and loads such as laptops, cameras, drones, CPAP equipment, emergency lights and camping equipment within the 100W rating. Actual runtime depends on device consumption, startup demand, conversion efficiency and battery condition. Verify compatibility for each connected device before approving the configuration.
No. The Eg013Li uses modified sine wave AC output at 220V/110V plus or minus 15%, with 50/60Hz plus or minus 2Hz. Check the input requirements of the intended equipment before purchase, because some devices may require a different waveform or tighter voltage and frequency conditions.
The unit includes a six-mode LED light with high beam, low beam, bright, half-bright, flashing and off settings. Its LCD shows capacity, voltage and charge or discharge status. These functions support field operation and status checks, while the selected application should still define the required lighting and monitoring arrangement.

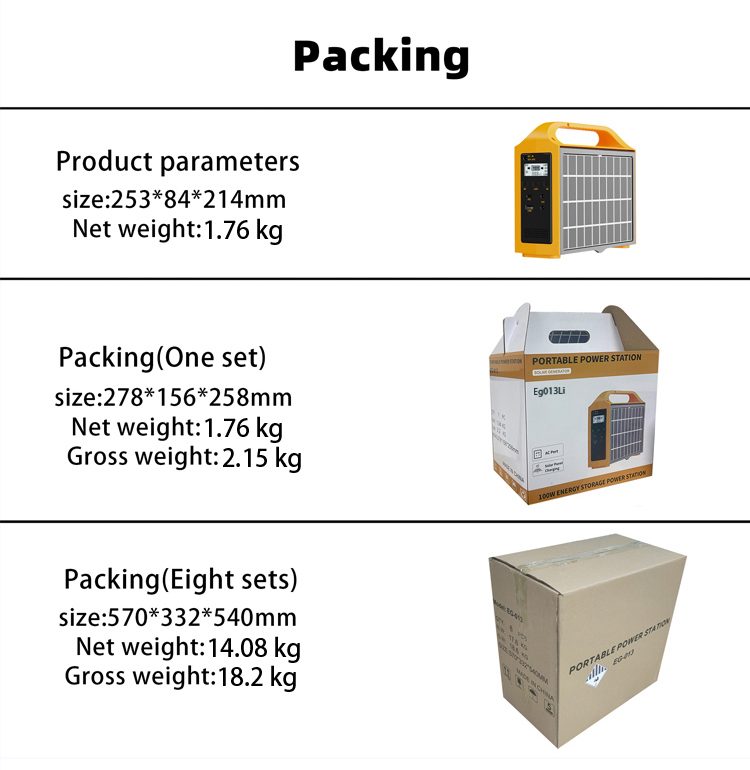

The Eg013Li measures 253 × 84 × 214mm and weighs approximately 1.76kg. Its ABS enclosure and compact format suit mobile use where carrying space is limited. Confirm packaging, storage position, cable clearance and operating access before approving the product for a distributor range or project installation.
UN38.3, CE and RoHS documents are available. Provide the target market, application, expected quantity, selected configuration, required output format and solar arrangement with the inquiry. Every order includes a 3-year limited warranty. Confirm any additional destination-market documentation before ordering.
