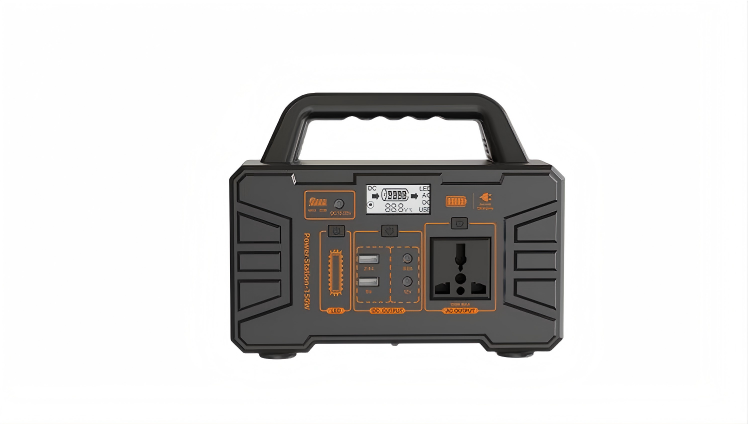

Eg017Pb-150W Portable Power Station
The Eg017Pb is an economical 150W portable power station for basic outdoor and emergency backup loads. Its 12V 9Ah sealed lead-acid battery supports a 220V/110V modified sine wave AC socket, two USB 5V/2.4A outputs and two DC5521 12V/3A outputs. Optional 18V 30W solar charging, an LCD, four-state LED light and replaceable-battery positioning support value-focused B2B supply.
Key Features
- ✓150W modified sine wave AC output with 220V/110V universal socket
- ✓Maintenance-free 12V 9Ah sealed lead-acid battery
- ✓Optional 18V 30W solar panel charging through DC5521
- ✓Two USB 5V/2.4A outputs for basic device charging
- ✓Two DC5521 12V/3A outputs for compatible DC loads
- ✓Four-state LED light with bright, half-bright, flashing and off modes
- ✓LCD displays capacity, voltage and charge or discharge status
- ✓Protection against low voltage, over voltage, overload, overheating and short circuits

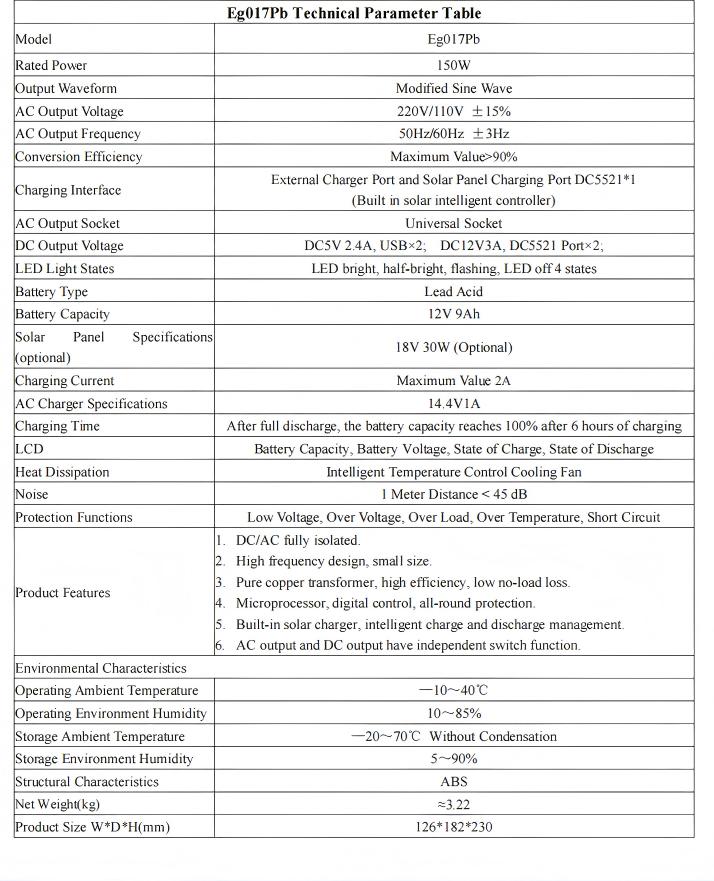

Technical Specifications
Common FAQs
The Eg017Pb suits basic camping and emergency backup loads within its 150W rated output. Its universal AC socket, USB ports and DC outputs support compatible small devices and equipment. Confirm continuous consumption, startup demand, required runtime and connection type before approval, because actual performance depends on the complete load.
The model uses a maintenance-free 12V 9Ah sealed lead-acid battery for an economy-focused product position. This supports value-oriented distributor channels and replaceable-battery applications. Confirm the service arrangement, replacement-battery availability and installation requirements with our team before ordering, as project maintenance expectations depend on the selected configuration.
Yes. The Eg017Pb accepts an optional 18V 30W solar panel through its DC5521 solar charging port. Solar charging depends on panel conditions, sunlight and system status. Confirm the panel specification, connector arrangement and expected charging use before ordering, especially when the project requires a defined solar input.
The listed AC charger specification is 14.4V 1A, with approximately six hours to full charge after full discharge. Maximum charging current is 2A. Actual charging time depends on battery condition, charger behavior and operating conditions. Confirm the charger arrangement and local electrical requirements before approving the order.

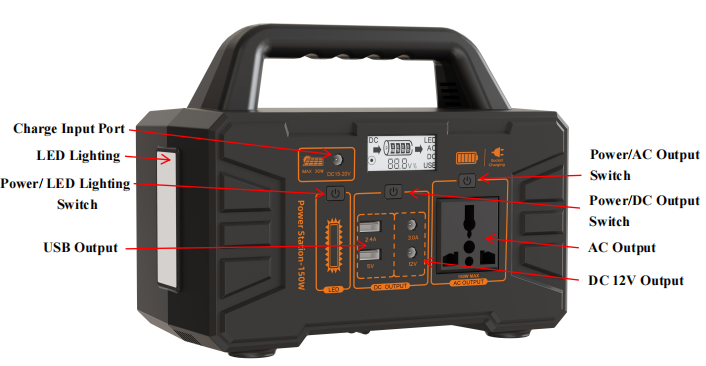

The unit provides two USB 5V/2.4A outputs and two DC5521 12V/3A outputs, in addition to the 220V/110V universal AC socket. Match each device with the correct voltage, current and connector. Confirm combined loading and startup requirements before selecting the unit for a specific application.
The Eg017Pb includes a four-state LED light with bright, half-bright, flashing and off modes, plus an LCD for capacity, voltage and charge or discharge status. An intelligent cooling fan operates with noise below 45dB at 1m. Confirm the required sound and operating conditions for the target application.

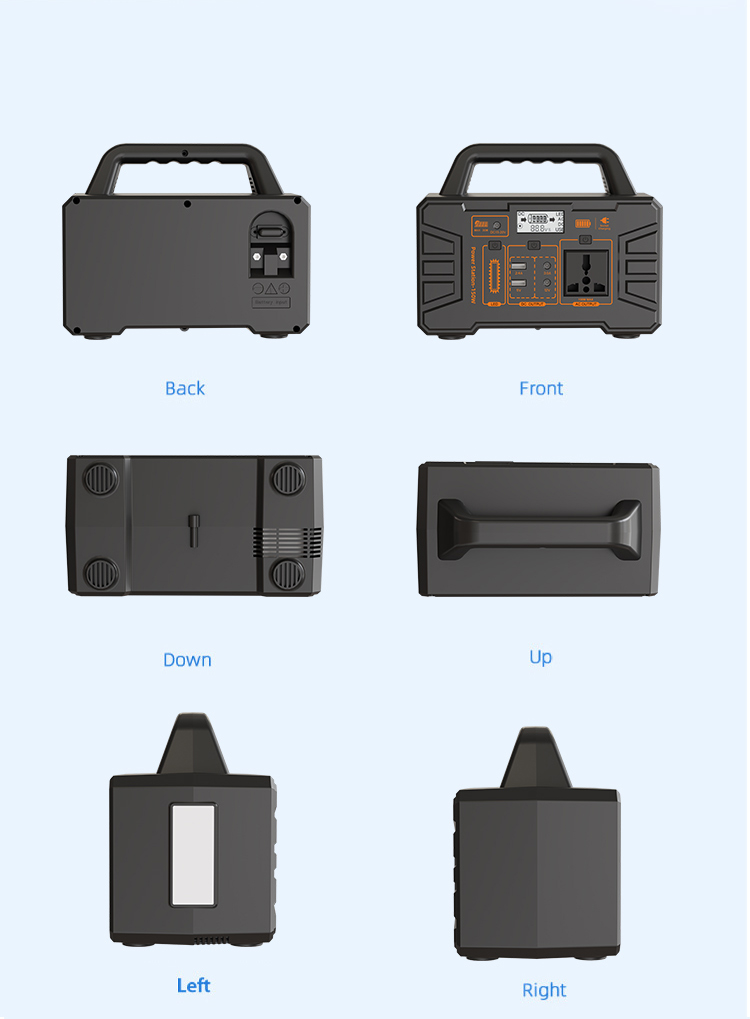

The unit measures 126 × 182 × 230mm, weighs approximately 3.22kg and has a listed working temperature of -10 to 40°C. Its ABS enclosure supports mobile handling, but installation space, ventilation, cable routing and storage conditions should be checked before selection for a distributor or project supply.
CE and RoHS documents are available. Provide the target market, application, expected quantity, battery replacement plan, selected configuration and charging method with the inquiry. Every order includes a 3-year limited warranty. Confirm any additional destination-market documentation before ordering.
