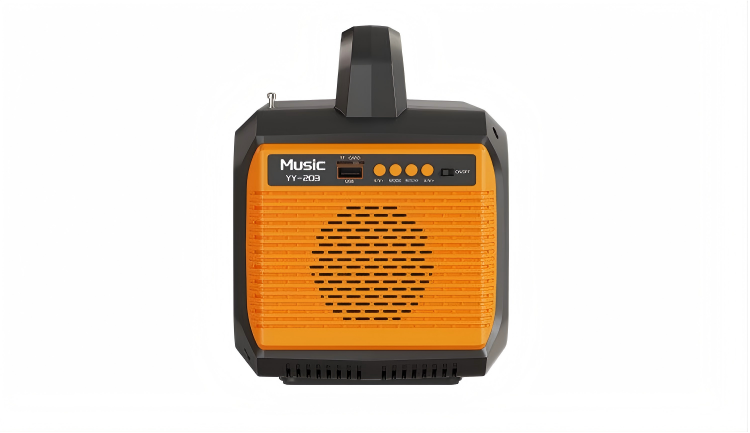

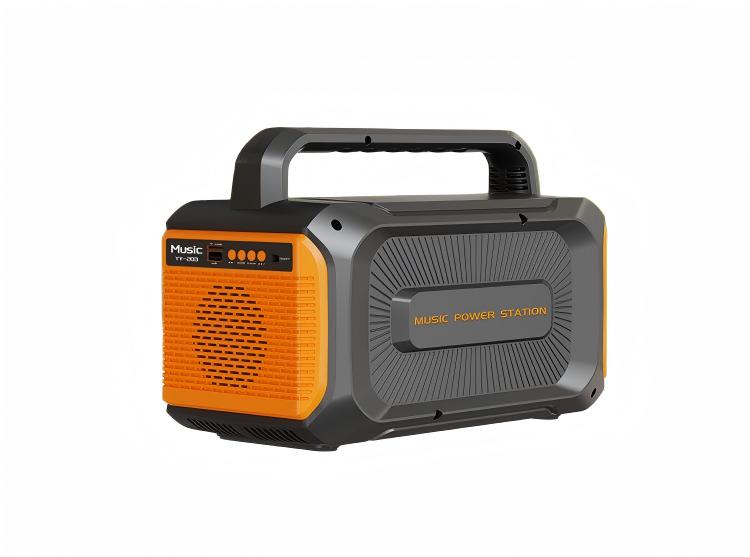

YY203-200W Music Power Station
The YY203 is a 2-in-1 music and power station for outdoor events, camping, tailgating and RV use. It combines a 200W modified sine wave AC output with a 12V 14Ah lead-acid battery, built-in 20W speaker, Bluetooth, TF card, USB playback and FM radio. Dual USB, PD20W, three DC outputs, optional 18V 30W solar charging and four-state LED lighting support varied field use.
Key Features
- ✓200W modified sine wave AC output with 220V/110V universal socket
- ✓12V 14Ah lead-acid battery for value-focused portable power
- ✓Built-in 20W speaker with Bluetooth, TF card, USB and FM playback
- ✓Two USB 5V/2.4A outputs and one PD20W output
- ✓Three DC5521 12V/3A outputs for compatible DC equipment
- ✓Optional 18V 30W solar panel charging through DC5521
- ✓Four-state LED light with bright, half-bright, flashing and off modes
- ✓Intelligent cooling fan with operating noise below 45dB at 1m

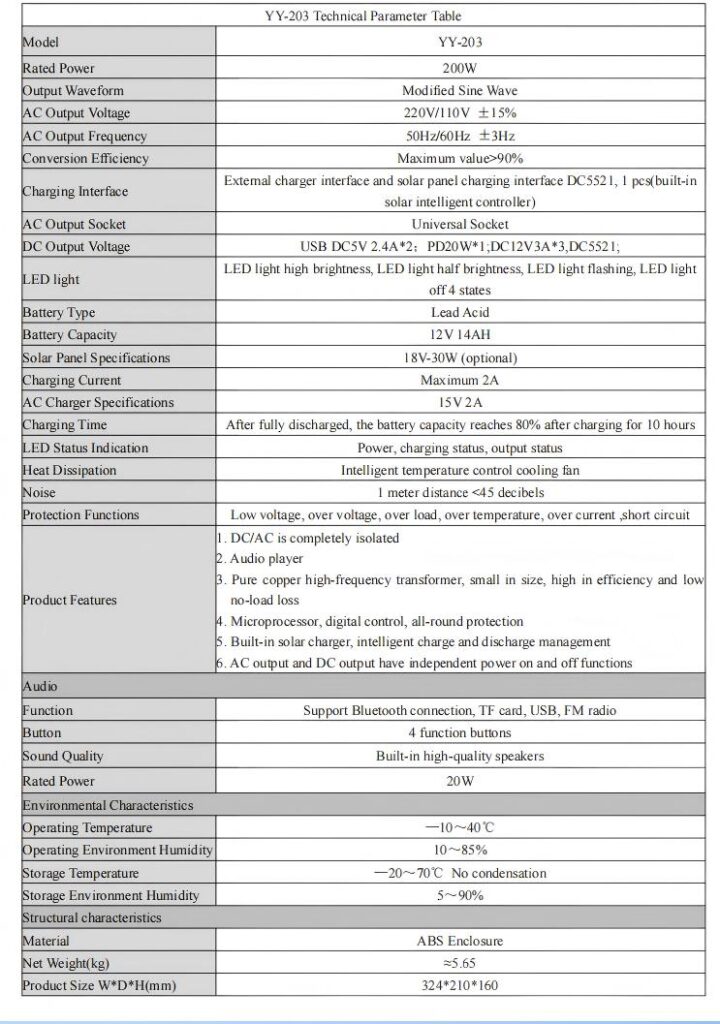

Technical Specifications
Common FAQs
The YY203 combines a 200W portable power station with a built-in 20W speaker system. It is intended for outdoor events, camping, tailgating and RV use where power and audio are needed together. Confirm the required load, audio use, carrying arrangement and operating environment before selecting it for a project.

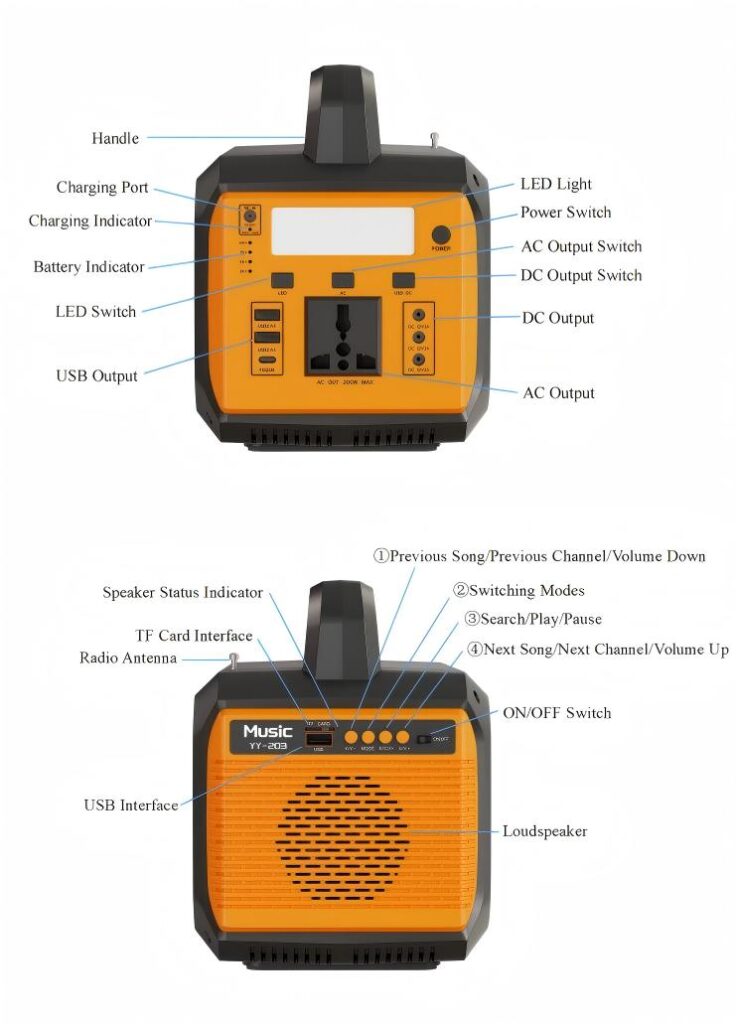

The built-in speaker supports Bluetooth, TF card, USB playback and FM radio through four function buttons. The 20W audio system is integrated with the power unit for field use. Confirm the preferred playback method, control requirements and target-market user expectations before ordering the selected configuration.
The YY203 provides 200W rated modified sine wave AC power for compatible small equipment and basic loads within that limit. It also provides USB, PD and DC outputs for suitable devices. Verify continuous consumption, startup demand, waveform requirements and combined loading before approving the unit for a specific application.
The model uses a 12V 14Ah lead-acid battery and is positioned as a value-focused music and power unit. Confirm the expected service life, handling, replacement arrangement and installation conditions with our team before ordering. Actual operating time depends on the connected load, audio use and battery condition.
Yes. The YY203 supports an optional 18V 30W solar panel through its DC5521 solar charging port. Charging performance depends on sunlight, panel conditions and system status. Confirm the panel specification, connector arrangement and expected charging application before ordering, particularly when the project requires a defined solar supply.
The unit provides two USB 5V/2.4A outputs, one PD20W output and three DC5521 12V/3A outputs, plus the universal AC socket. Match every device with its required voltage, current and connector. Confirm combined loading and startup demand before selecting the configuration for an event, RV or outdoor project.
The YY203 measures 324 × 210 × 160mm, weighs approximately 5.65kg and has a listed working temperature of -10 to 40°C. Its ABS enclosure and integrated speaker suit portable event use. Confirm carrying space, ventilation, cable routing and storage conditions before approving the product for the intended channel.
CE and RoHS documents are available. Provide the target market, application, expected quantity, audio functions, selected configuration and charging method with the inquiry. Every order includes a 3-year limited warranty. Confirm any additional destination-market documentation before ordering.
