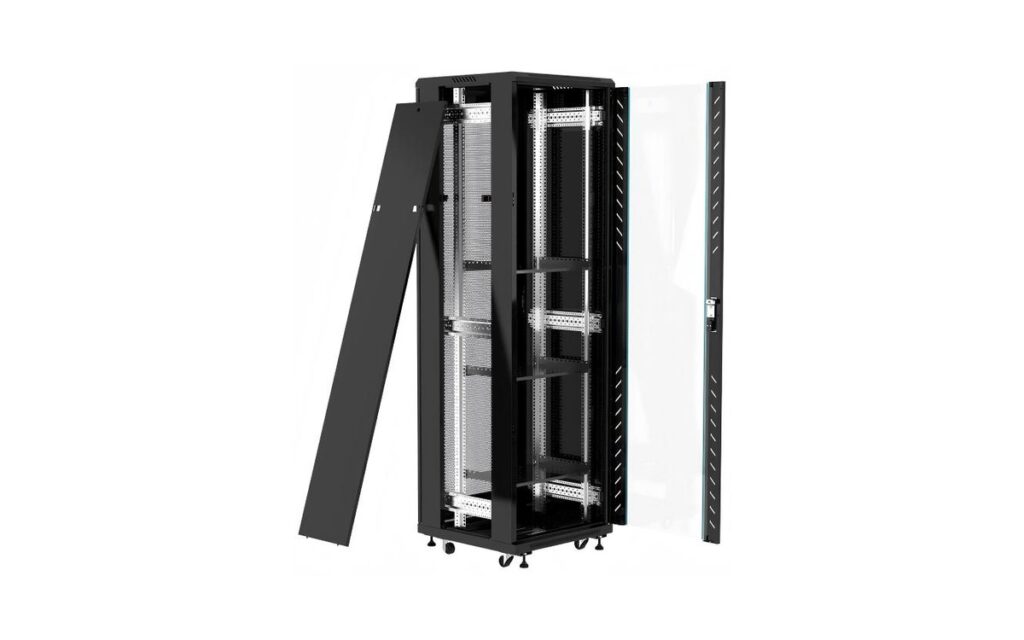

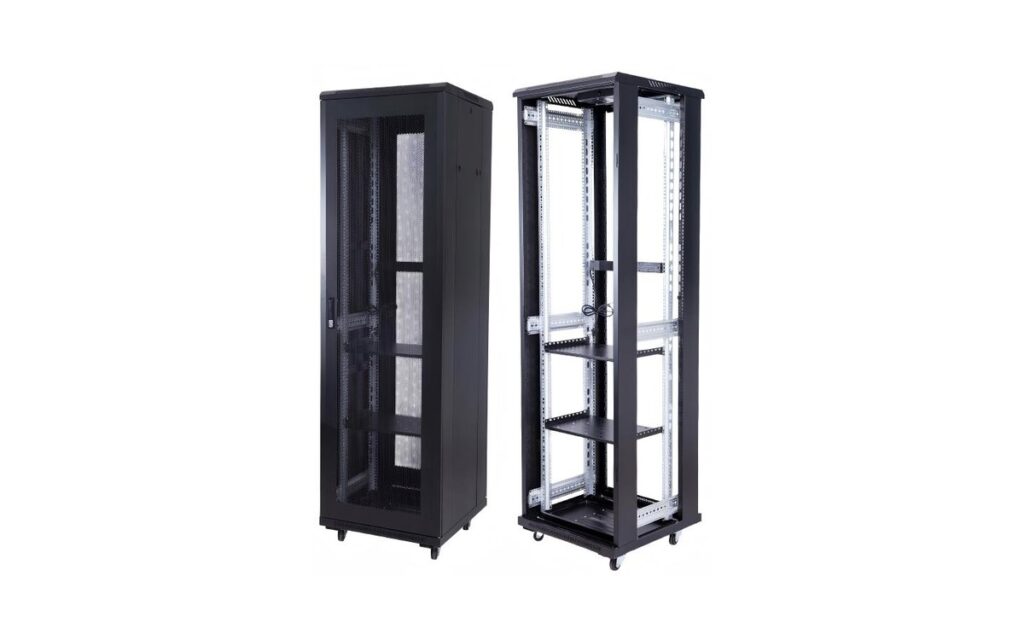

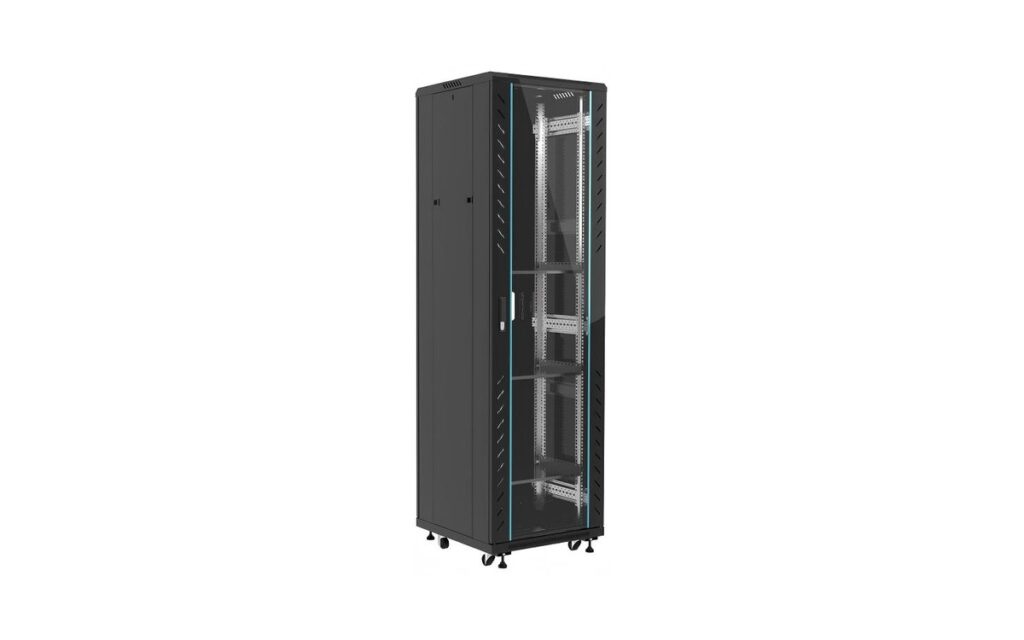

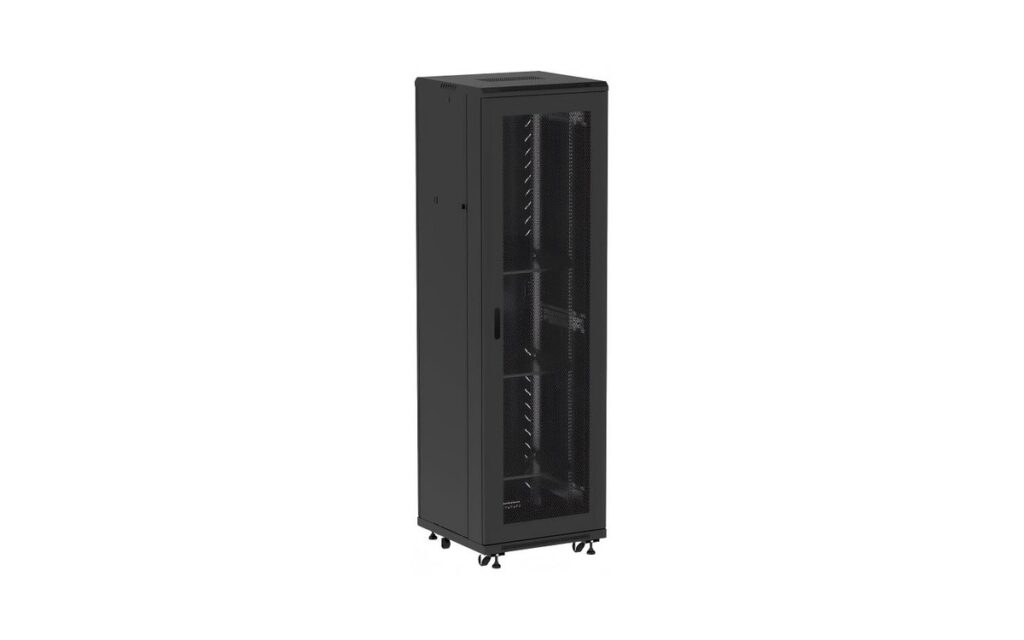

Indoor Telecom Cabinet
The LINEX Indoor Telecom Cabinet organizes batteries, rectifiers, controllers and network equipment in protected telecom rooms, shelters and data centers. Available from 10U to 47U, it uses a 19-inch rack structure made from SPCC cold-rolled steel with a powder-coated finish. Two footprint options, a tempered-glass front door, IP20 protection and black or gray finishes support indoor infrastructure projects. Final capacity and internal layout should match the installed equipment and service requirements.
Key Features
- ✓10U to 47U capacity for different equipment layouts
- ✓19-inch standard rack for indoor telecom and network equipment
- ✓SPCC cold-rolled steel structure with powder-coated finish
- ✓600 × 800mm and 800 × 800mm footprint options
- ✓Tempered-glass front door for equipment visibility
- ✓IP20 protection for controlled indoor environments
- ✓RAL9004 black standard with RAL7035 gray option
- ✓OEM configuration for color, branding and project layout
Technical Specifications
| Product Name | Indoor Telecom Cabinet |
| Type | 19" Standard Server Cabinet |
| Cabinet Standard | 19 inch |
| Capacity | 10U / 12U / 15U / 18U / 22U / 27U / 32U / 37U / 42U / 47U |
| Dimensions | 600×800mm / 800×800mm |
| Material | SPCC Cold Rolled Steel |
| Surface Finish | Powder Coated |
| Front Door | Tempered Glass Door |
| Color | RAL9004-Black (RAL7035-Gray Optional) |
| Protection Degree | Network Rack IP20 |
| Application | Data Center Server Rack |
| OEM Server | Accept |
Common FAQs
The cabinet can organize compatible batteries, rectifiers, controllers, power distribution and network hardware within a 19-inch rack layout. Final equipment selection depends on U height, depth, heat load, cable routing, maintenance clearance and the total supported weight of the configured cabinet.
Available capacities are 10U, 12U, 15U, 18U, 22U, 27U, 32U, 37U, 42U and 47U. Select the U height after allowing space for installed equipment, cable management, ventilation, future expansion and safe maintenance access.
The listed footprint options are 600 × 800mm and 800 × 800mm, with cabinet height determined by the selected U capacity. Confirm equipment depth, door clearance, rear cable space and the access route into the equipment room before ordering.
IP20 is intended for controlled indoor environments such as telecom rooms, shelters and data centers. The cabinet should not be treated as weatherproof. Review room temperature, humidity, dust, water exposure, ventilation, floor loading and access conditions before installation.
The cabinet uses SPCC cold-rolled steel with a powder-coated finish. RAL9004 black is the standard color and RAL7035 gray is optional. Confirm the required color, surface expectations and project labeling before order approval.
Plan the rack layout around equipment U height, depth, weight, airflow, power distribution, grounding, cable bend radius and service access. Heavy batteries or power equipment require suitable support and should be positioned according to the approved structural and maintenance plan.
OEM requirements can be reviewed for cabinet capacity, footprint, color, branding and project configuration. Final feasibility depends on confirmed equipment dimensions, internal layout, quantity and approved drawings. Provide the complete equipment list with the inquiry.
Provide the required U height, footprint, installed equipment list, equipment depth and weight, door and color preference, cable-entry requirements, internal accessories, branding, project quantity and destination. These details are needed before confirming the final cabinet configuration.
