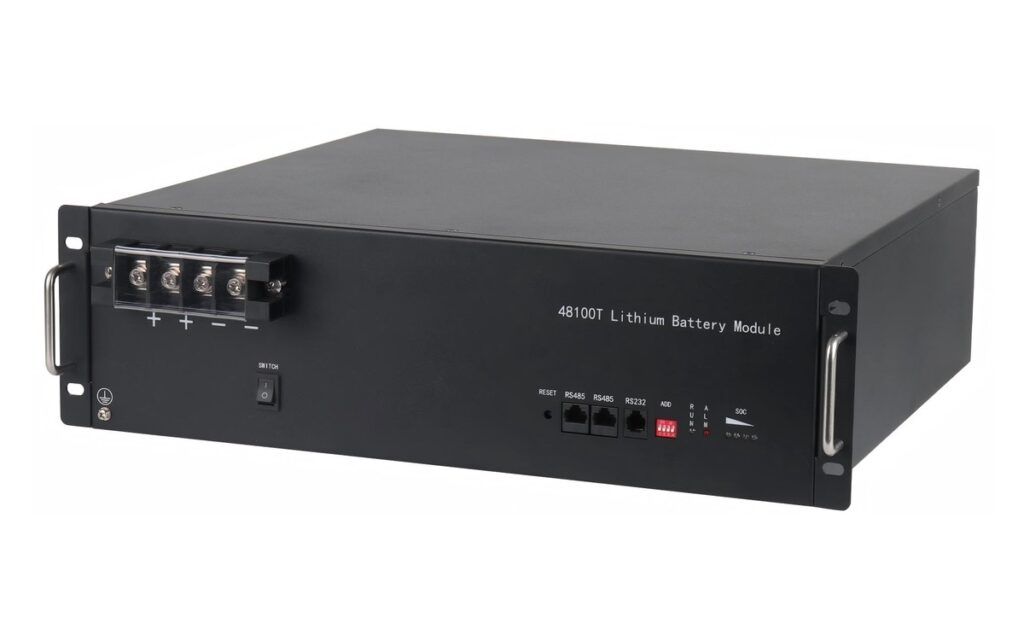

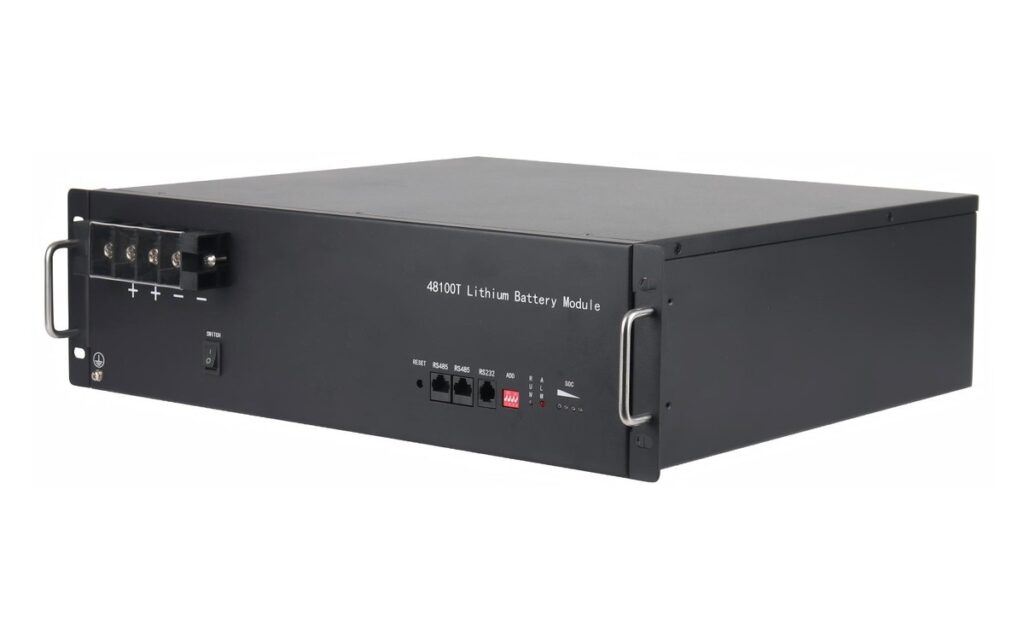

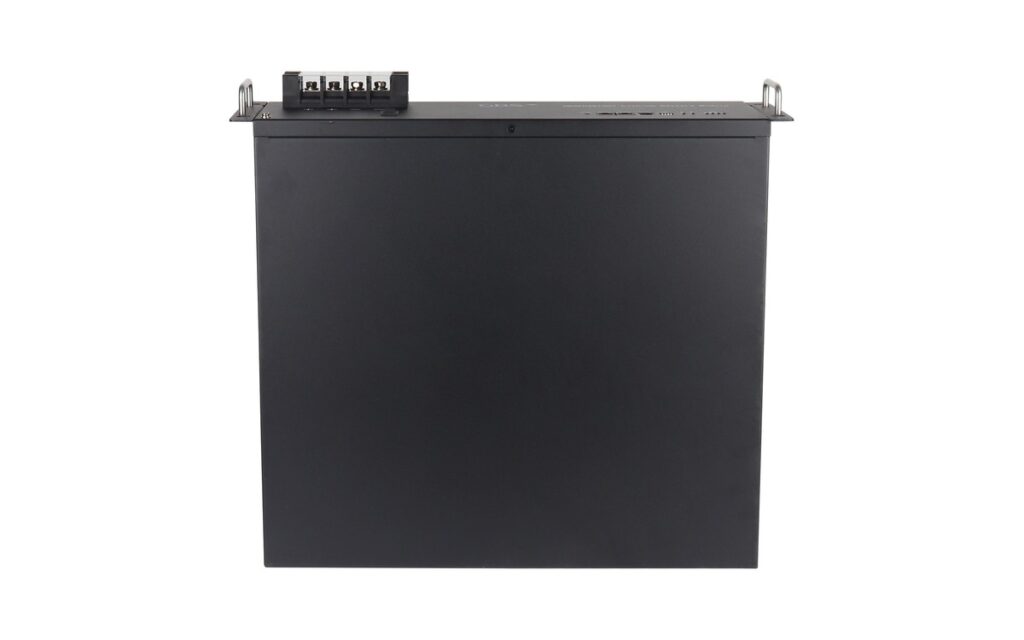

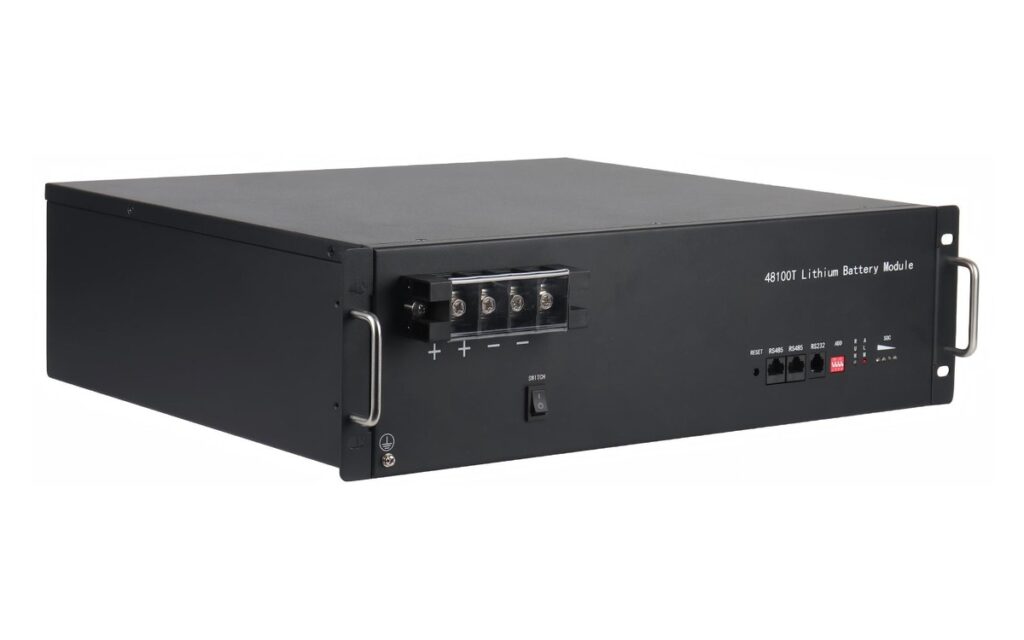

48V 100Ah Telecom LiFePO4 Battery
The Standard 48V 100Ah telecom LiFePO4 battery is a 3U 19-inch rack module for base stations, remote sites, UPS systems and network backup. Its 4.8kWh nominal energy, 100A maximum charge and discharge rating at 25°C, and RS485/RS232 communication support system integration and monitoring. Built-in BMS protection, Grade-A EVE or CATL cells, and 6,000+ cycles at 80% DOD make it suitable for telecom integrators, distributors and project procurement.
Key Features
- ✓4.8kWh nominal energy in a 3U 19-inch rack
- ✓Up to 100A charge and discharge at 25°C
- ✓RS485 and RS232 communication for site monitoring
- ✓Built-in BMS protection for current, temperature, short circuit and over-discharge
- ✓10A built-in charging current limitation
- ✓6,000+ cycles at 25°C and 80% DOD
- ✓Grade-A EVE or CATL LiFePO4 cells
- ✓IP20 enclosure for protected indoor rack installations
Technical Specifications
| Model | 48V100AH |
| Height | 3U (19" rack) |
| Nominal Voltage | 48Vdc |
| Equalization Charge Voltage | 53.3Vdc |
| Floating Charge Voltage | 51.0Vdc |
| Cutoff Discharge Voltage | 40.5Vdc |
| Max Charge / Discharge Current | 100A / 100A @25°C |
| Charging Current Limiting | 10A |
| Weight | 43kg |
| Size (WDH) | 442 × 420 × 133mm (482mm depth incl. handles & terminals) |
| Self Discharge @25°C | < 5% in 90-day storage |
| Communication | RS485, RS232 |
| Protection Functions | Over-temperature, over-current, short circuit, over-discharge, etc. |
| Cycle Life | 6000 cycles (25°C / 80% DOD) |
| Operating Temperature | Charge: 0°C ~ 65°C; Discharge: -20°C ~ 65°C |
| Design Life | 10 Years |
| Class IP | IP20 |
Common FAQs
The battery provides 4.8kWh of nominal energy and is intended for telecom base stations, remote sites, network backup and compatible UPS systems. Final quantity should be selected from the measured site load, required backup duration, usable depth of discharge, system losses, temperature and aging reserve.
Start with the site's average DC load and required backup hours. Divide the required energy by the usable system efficiency, then include depth of discharge, temperature, cable losses and capacity aging. A fixed backup time cannot be determined from the 100Ah rating alone.
Yes. The battery uses a 3U 19-inch rack format and measures 442 × 420 × 133mm, with a depth of 482mm when handles and terminals are included. Confirm cabinet depth, ventilation, cable clearance and support for the 43kg battery before installation.
Compatibility must be checked against the rectifier or UPS charging profile. This model specifies 53.3V equalization charge, 51.0V float charge and 40.5V discharge cutoff. Also verify charge-current limits, low-voltage disconnect settings, protection devices, cable sizing and communication requirements.
Parallel expansion requires an engineered system review. Confirm that the battery configuration, state of charge, firmware, communication settings, busbars, cable lengths, overcurrent protection and current-sharing design are compatible before connecting units. Ask LINEX to review the planned quantity and site architecture.
The battery provides RS485 and RS232 communication for integration with compatible site controllers, rectifiers or monitoring systems. Confirm the required protocol, connector, register map and alarm interface during project evaluation because communications must match the equipment used at the site.
It can be evaluated as a replacement where the rack, rectifier, charging range, low-voltage disconnect, cables and protection settings are compatible. Do not treat nominal 48V alone as confirmation. Existing lead-acid and lithium configurations should be reviewed before a staged or mixed-system upgrade.
Model documentation is available for UN38.3, CE, RoHS and FCC review, with a 5-year warranty. Confirm the exact documents required by the destination market and project tender before ordering, and provide the intended application, quantity and destination with the inquiry.
