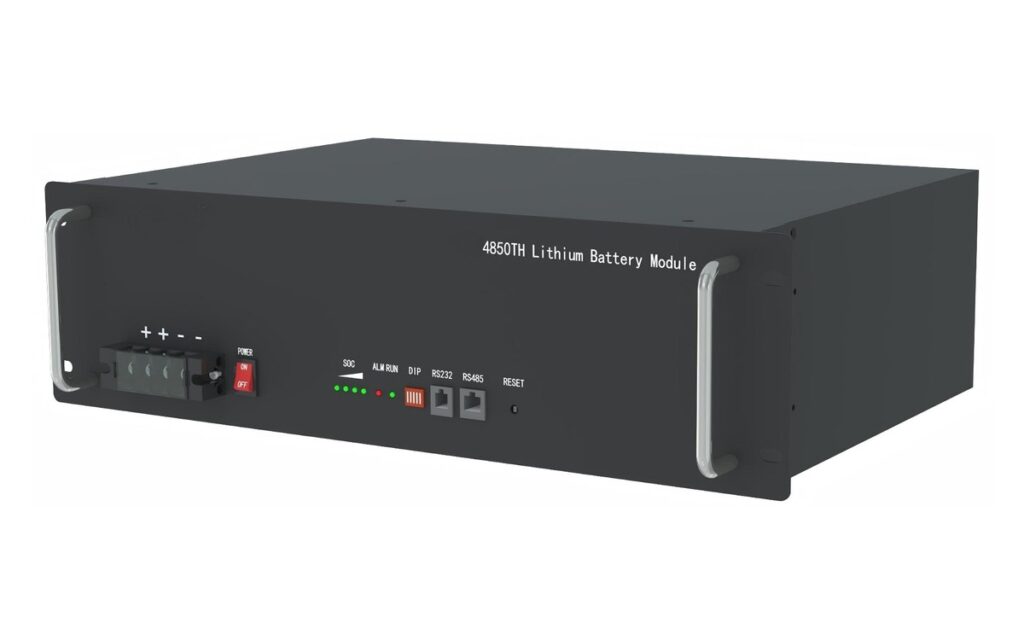

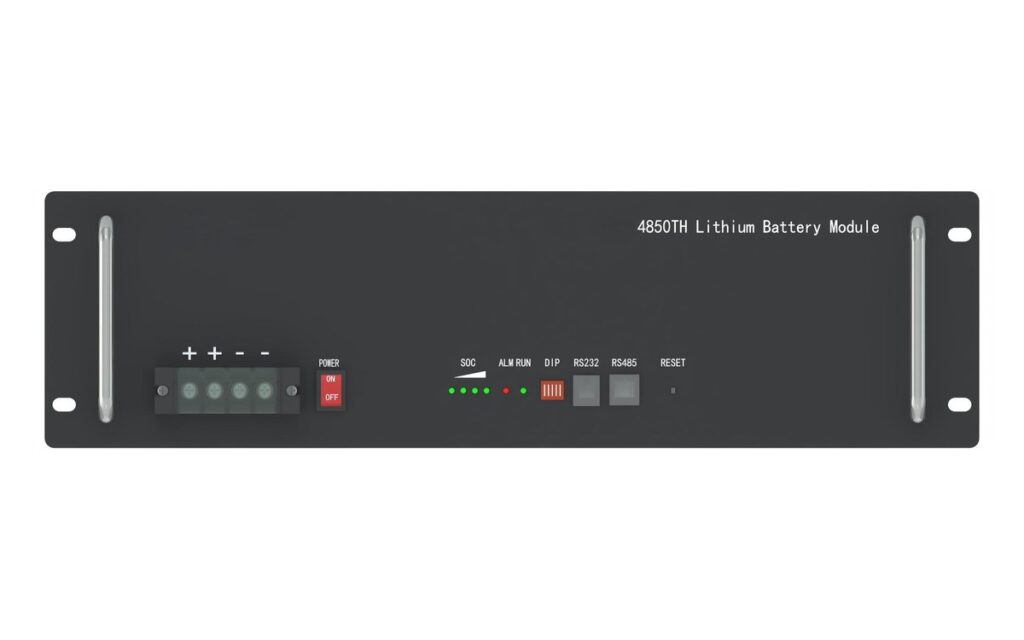

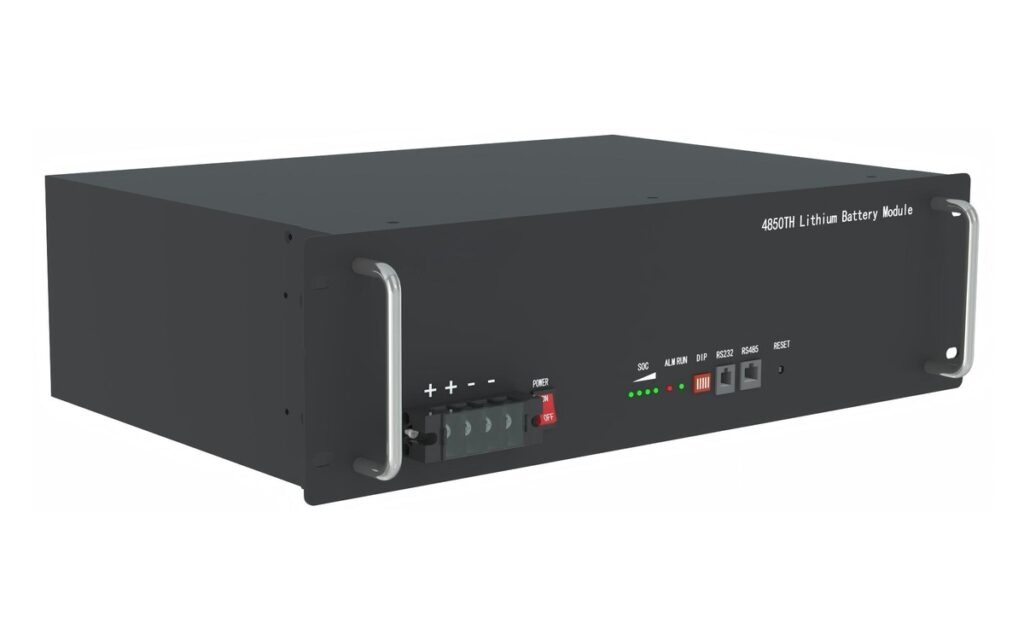

Standard 48V 50Ah LiFePO4 Battery for Telecom Sites
The Standard 48V 50Ah telecom LiFePO4 battery is a compact 2.4kWh rack-mounted module for base stations, remote sites, network backup and compatible UPS systems. It supports up to 50A charge and discharge at 25°C, with RS485/RS232 communication for monitoring and integration. Built-in BMS protection, Grade-A EVE or CATL cells, a 6,000-cycle rating at 80% DOD and a 29kg enclosure suit space-constrained telecom projects.
Key Features
- ✓2.4kWh nominal energy at 48V and 50Ah
- ✓Up to 50A charge and discharge at 25°C
- ✓Compact 483 × 325 × 133mm rack enclosure
- ✓RS485 and RS232 communication for site monitoring
- ✓BMS protection for temperature, current, short circuit and over-discharge
- ✓6,000-cycle rating at 80% depth of discharge
- ✓Charge from 0°C to 65°C and discharge from -20°C to 65°C
- ✓Grade-A EVE or CATL LiFePO4 cells
Technical Specifications
| Model | 48V50AH |
| Anode / Cell Type | LiFePO4 |
| Nominal Voltage | 48Vdc |
| Nominal Capacity | 50Ah |
| Nominal Energy | 2400Wh |
| Equalization Charge Voltage | 53.3Vdc |
| Floating Charge Voltage | 51.0Vdc |
| Cutoff Discharge Voltage | 40.5Vdc |
| Max Charge / Discharge Current | 50A / 50A @25℃ |
| Installation Method | Rack Mounted |
| Weight | 29 kg |
| Size (WDH) | 483mm325mm133mm |
| Self Discharge @25℃ | < 5% in 90-day storage |
| Communication | RS485, RS232 |
| Protection Functions | Over-temperature, over-current, short circuit, over-discharge, etc. |
| Cycle Life | 6000 cycles (80% DOD) |
| Operating Temperature | Charge: 0℃~65℃; Discharge: -20℃~65℃ |
| Relative Humidity | 5% ~ 95% |
| Altitude | 0 ~ 6000m |
Common FAQs
The battery provides 2.4kWh of nominal energy for compact base stations, remote telecom nodes, network backup and compatible UPS systems. Select battery quantity from measured site load, required backup duration, usable depth of discharge, system losses, temperature and capacity-aging reserve.
Multiply the average site load by the required backup hours, then account for usable system efficiency, depth of discharge, temperature, cable losses and aging reserve. Actual runtime depends on the complete load profile and cannot be determined from the 50Ah rating alone.
The rack-mounted module measures 483 × 325 × 133mm and weighs 29kg. Confirm rack width, depth, vertical clearance, load capacity, ventilation, cable routing and service access before installation. The supporting structure must carry the battery safely during operation and maintenance.
Check the charging profile against 53.3V equalization, 51.0V float and 40.5V discharge cutoff. Also verify charge-current limits, low-voltage disconnect settings, cable size, protection devices and communication requirements. Nominal 48V alone does not confirm compatibility.
Parallel expansion requires an engineering review of battery configuration, state of charge, communication settings, busbars, cable lengths, current sharing and overcurrent protection. Provide the planned quantity, rectifier details and site load so the proposed architecture can be checked.
RS485 and RS232 communication are available for integration with compatible site controllers, rectifiers or monitoring systems. Confirm the protocol, connector, register map and alarm requirements during project evaluation because the communication interface must match the site equipment.
Replacement is possible only after checking rack space, rectifier voltage, charging current, low-voltage disconnect, cables, fuses or breakers and monitoring requirements. Existing lead-acid and lithium configurations should not be mixed without validating system logic and protection coordination.
Documentation for UN38.3, CE, RoHS and FCC review is available, with a 5-year warranty. Confirm the exact documents required by the destination market and project tender before ordering, and include the application, quantity, installation environment and destination.
Telecom Project Resources
Use these resources to compare site configurations, estimate backup capacity, and prepare the technical details required for a 48V telecom battery quote.
