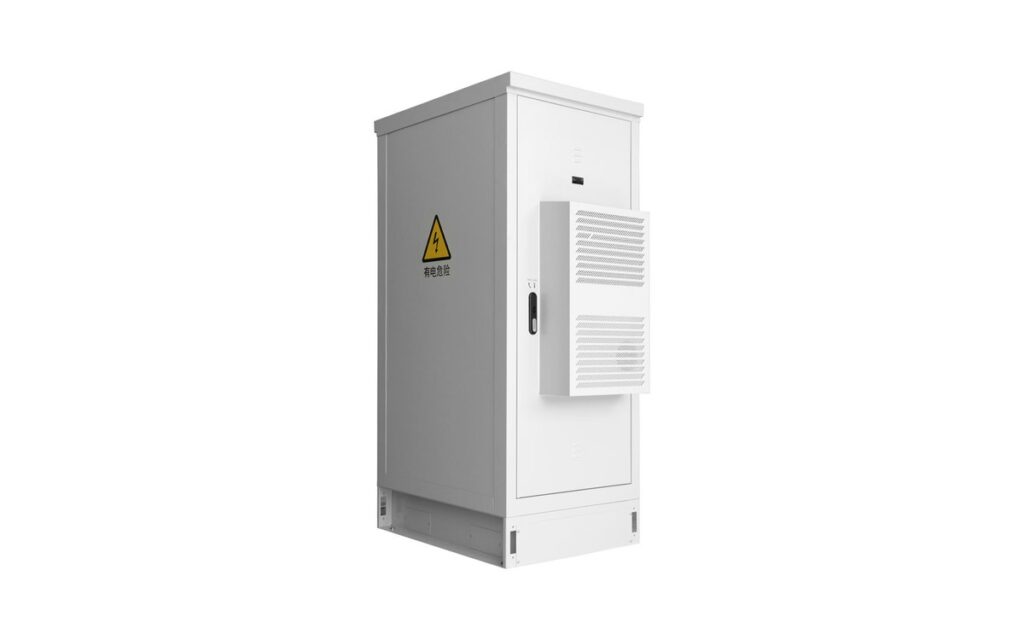

IP65 Outdoor Telecom Battery Cabinet
The LINEX IP65 outdoor telecom battery cabinet protects batteries, rectifiers and network equipment at base stations and remote sites. Available from 6U to 26U, it combines a 19-inch four-post rack, galvanized cold-rolled steel, 45mm EPS insulation and a sealed weatherproof enclosure. Adjustable brackets, door-controlled lighting, temperature-controlled exhaust cooling and configurable locks support roadside, railway, smart-city and industrial telecom installations. Final cooling and internal layout are configured to project conditions.
Key Features
- ✓IP65 sealed protection against weather, dust and insects
- ✓6U to 26U capacity for different site layouts
- ✓19-inch four-post square-hole rack with adjustable brackets
- ✓Galvanized cold-rolled steel with 45mm EPS insulation
- ✓600 × 450mm and 600 × 600mm footprint options
- ✓Temperature-controlled exhaust fan and project cooling options
- ✓Mechanical lock standard with electronic and double-door options
- ✓OEM configuration for internal layout, color and project labeling
Technical Specifications
| Product Name | Outdoor Telecom Cabinet |
| Capacity (U) | 6U, 9U, 12U, 15U, 18U, 20U, 26U |
| Rack Standard | 19 inch, 4-post square-hole, 3 pairs adjustable brackets |
| Dimensions (W*D) | 600*450mm, 600*600mm (Height varies by U size) |
| Material | Galvanized cold-rolled steel + 45mm EPS insulation |
| Protection Degree | IP65 (Weatherproof, dustproof, insect-proof, UV-resistant) |
| Cooling System | AC power redundancy; temperature-controlled exhaust fan (600W for 650mm cabinet, 1500W for ≥750mm cabinet) |

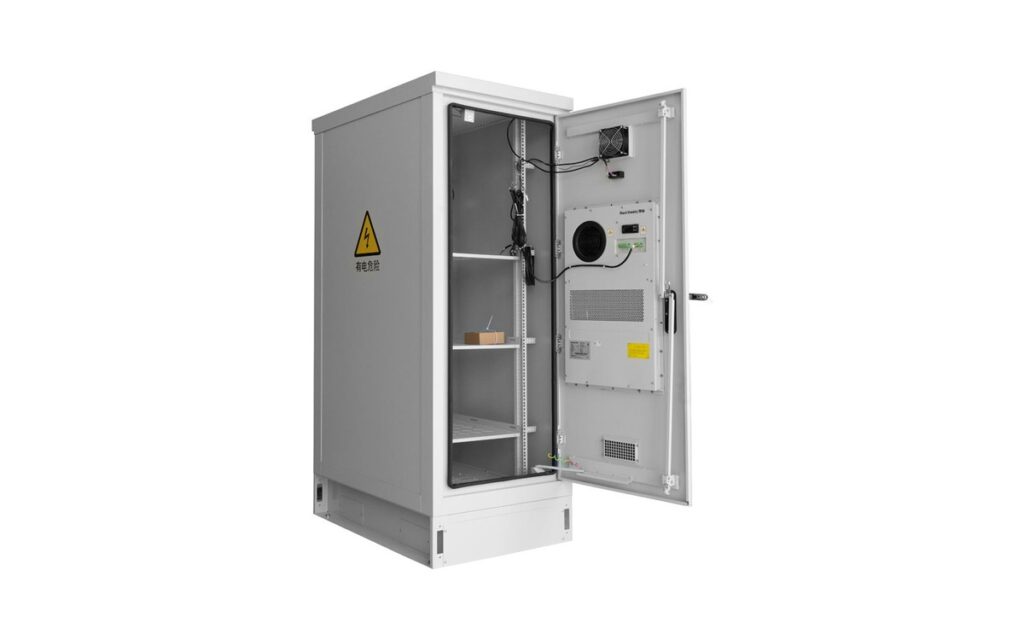

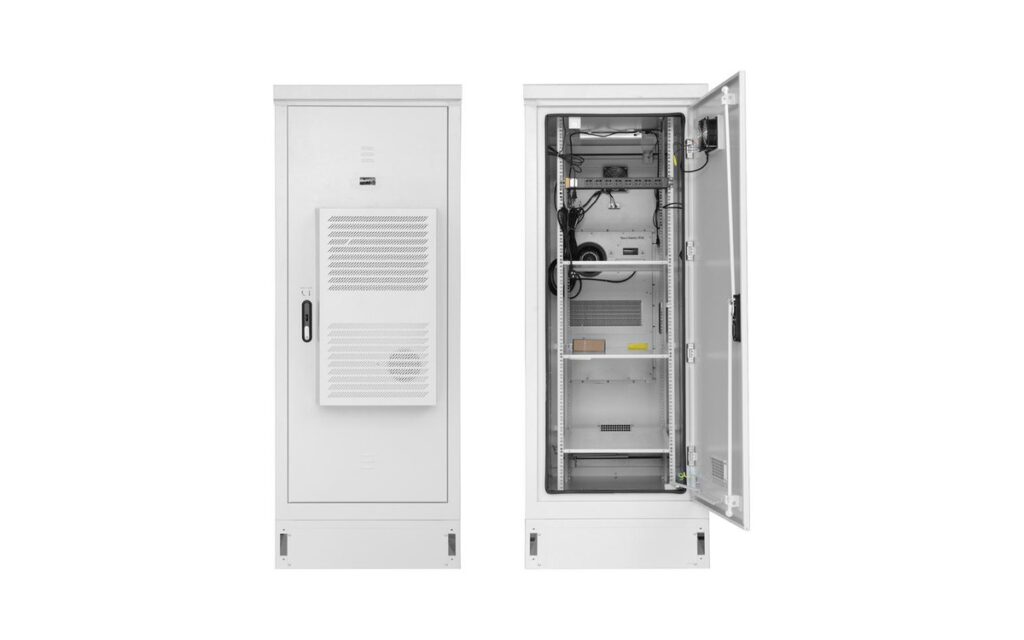

| Door Configuration | Front single door with mechanical lock (Standard); Optional front+rear double doors with brand electronic lock |
| Smart Interior | Door-controlled LED light, temperature-controlled fan, full installation hardware |
| Application | 5G base stations, outdoor telecom rooms, roadside cabinets, railway/subway lines, renewable energy sites, smart city infrastructure, industrial IoT gateways |
Common FAQs

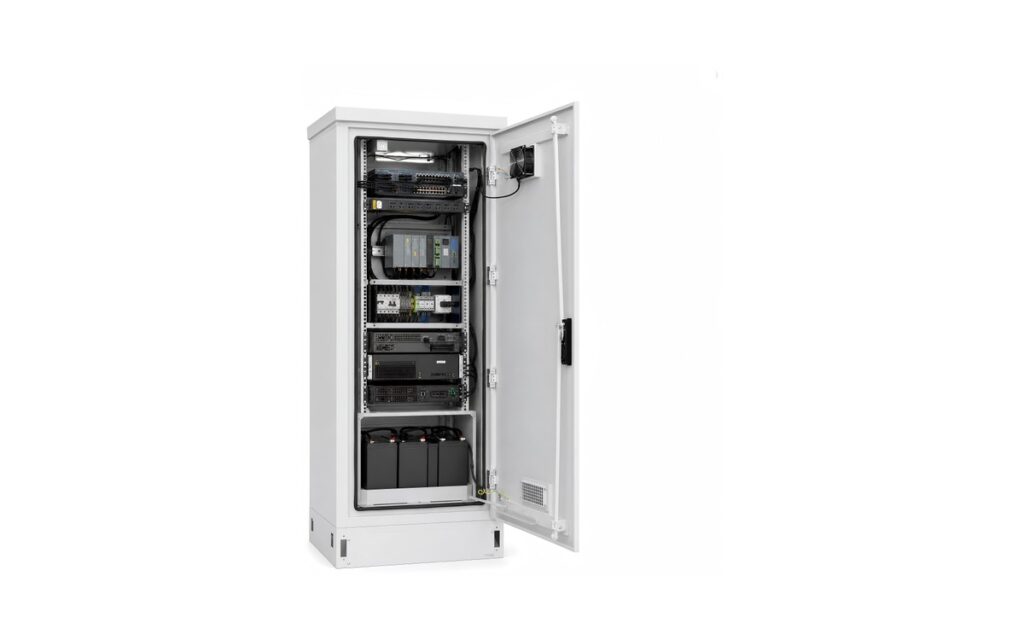

The cabinet can house compatible telecom batteries, rectifiers, power distribution, controllers and network equipment within a 19-inch rack layout. Final equipment selection depends on U height, depth, heat load, cable entry, maintenance clearance and the total supported weight of the configured cabinet.
Available capacities are 6U, 9U, 12U, 15U, 18U, 20U and 26U. Standard footprint options are 600 × 450mm and 600 × 600mm, while cabinet height varies with U capacity. Confirm equipment dimensions and service clearance before selecting a size.
The enclosure is specified as IP65 for protection against dust and water exposure, with a sealed structure designed for outdoor telecom use. Site design must still consider cable glands, door sealing, drainage, installation orientation, flooding risk, corrosive atmosphere and maintenance practices.
The cabinet includes temperature-controlled exhaust cooling and supports project-specific cooling arrangements. Cooling capacity must be selected from ambient temperature, solar load, installed equipment heat, insulation, cabinet size and operating duty. Fan, air-conditioning or heater requirements should be confirmed during engineering review.
It can be configured for demanding outdoor sites, but temperature, humidity, salt spray, corrosion, UV exposure and ventilation must be reviewed for each project. Provide the installation location and environmental range so coating, sealing, thermal management and maintenance requirements can be confirmed.
The cabinet uses a 19-inch four-post square-hole rack with three pairs of adjustable brackets. The internal layout must account for battery weight, shelf support, rectifier and distribution space, cable bend radius, grounding, airflow, alarms and safe front or rear maintenance access.
A front single door with mechanical lock is standard. Electronic locks and front-and-rear double-door arrangements are available as project options. Door-controlled LED lighting, temperature-controlled fan operation and alarm or monitoring interfaces should be specified during configuration review.
Provide the required U size, cabinet depth, installed equipment list, battery quantity and weight, heat load, ambient temperature, cooling preference, cable entry, door and lock arrangement, monitoring interfaces, color, project quantity and destination. These details are needed before confirming the final configuration.
